Clarke 4.3 Gal. install

Post  DirtyErnie on Sat Jul 28, 2012 1:18 am

Slideshow:


Stills and info:

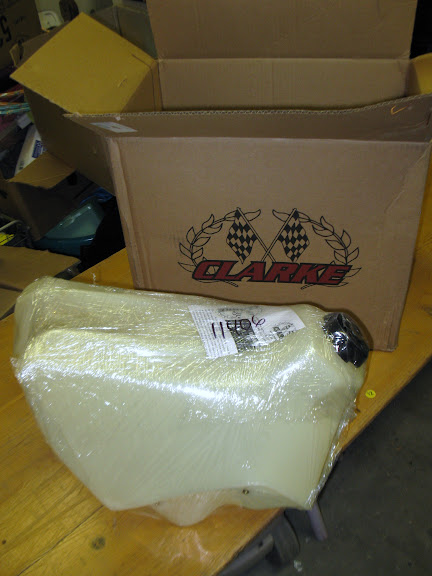

Fresh outta the box...

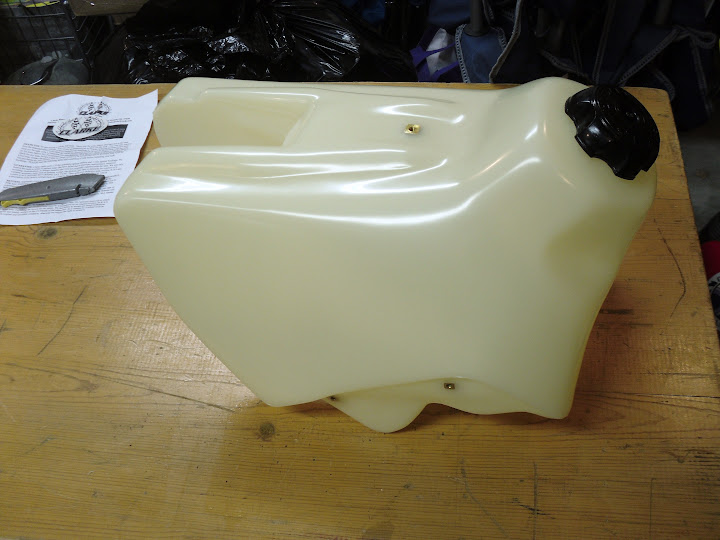

It'll never be this clean again!


Molding excess blocking the hole.

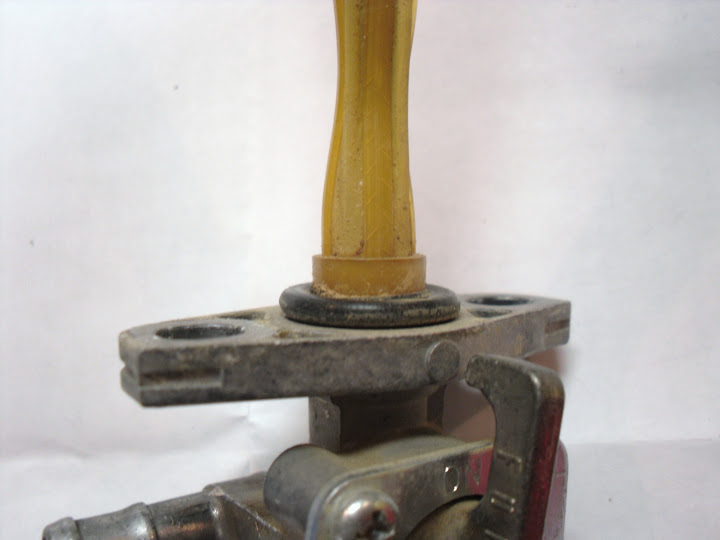

Because of the step up over the oring I have to open the hole to 1/2 inch.


Ideally I would use a Uni-bit/Stepped Bit for this material but I don't have one the right size. For the little bit I had to remove the boring bit worked fine.


The opened up hole, even after the bit I still had to run the tip of a utility knife around the inside lip of the hole to remove the last bit of "fluff".


All the excess "fluff" from inside the hole next to the petcock for size referance.

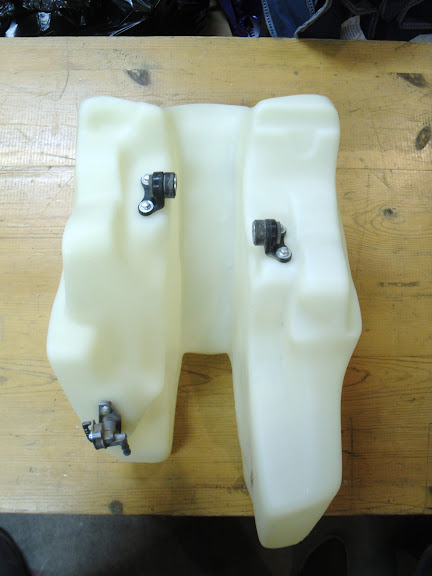

Mounts and petcock on the new tank.


Breather Vent from the old cap on the new one.

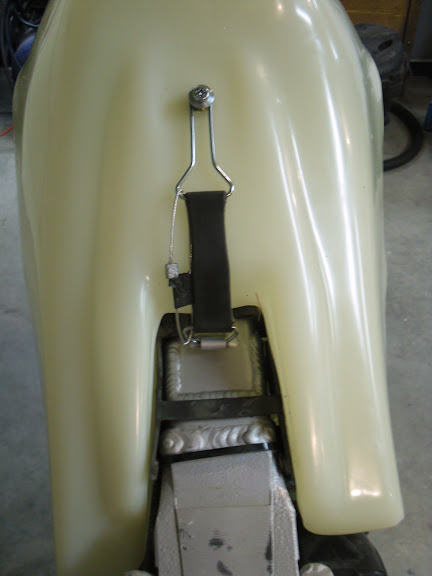

Stock seat screw and tank strap.


I can still reach the choke lever while seated on the bike.


Left side clearances around the tank.


Still room for my enlarged wiring harness etc.


The stock hose looks like it might need a trim but don't be fooled!


Still fits, just a little differently.


Right side clearances around the tank.


Right side clearances around the tank.


Left front clearances for wires and cables.

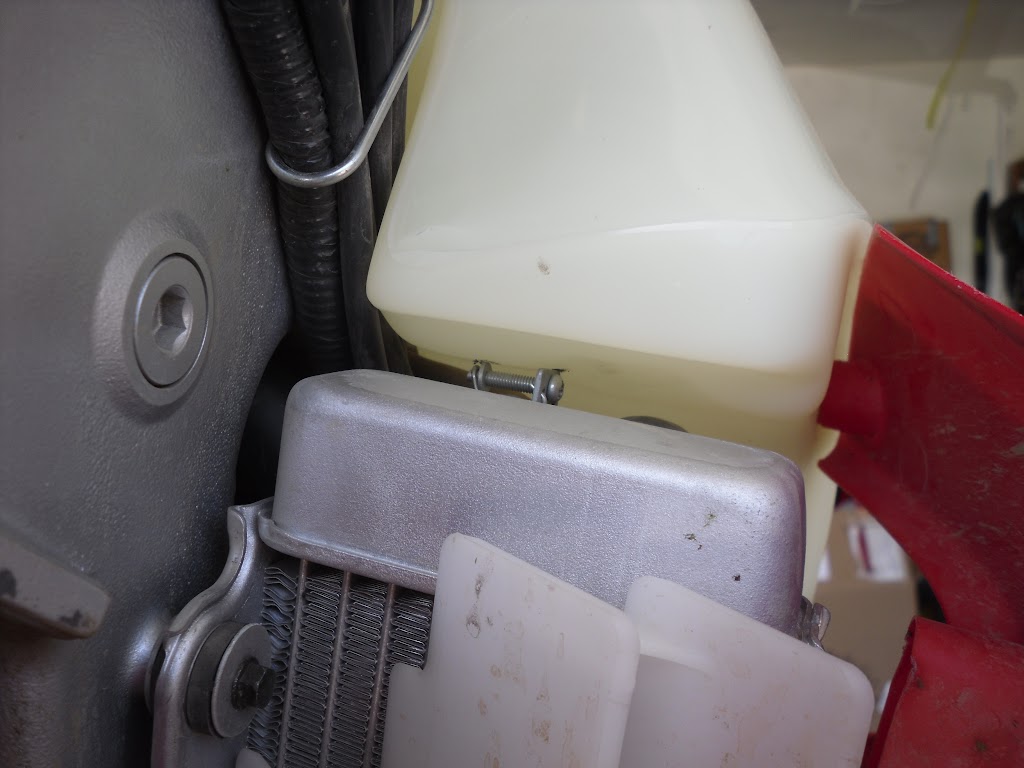

Slight contact at full lock, I'm not concerned.


All done, left side.

All done, right side.

Now it's time to fill 'er up and try it out! Smile banana razz
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  Mauser on Sat Jul 28, 2012 9:04 am

Great info, I know your not concerned but I am about the lsight contact, is there nowt you can do about it ?.
Also any chance I could copy your photo's & txt to add to the service section of our website ?... www.xr650r.co.uk always a good thing to have for others to share.

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1830
Location : UK
XR650R Year : 2002

Back to top Go down

Tank Contact

Post  DirtyErnie on Sat Jul 28, 2012 3:54 pm

I don't know if the contact at full lock could be due to a misalignment or irregularity of the tank molding. I also have HDB upper bar clamps which hang back a bit farther than stock. It doesn't touch at full lock the other way but is fairly close leading me to believe that the tank is lined up pretty evenly. I know that Clarke was having manufacturing issues recently as this is the reason I was given for the long delay in getting my tank.

As far as sharing this info, go for it, that's why I post it. In my opinion, once it's posted online it's public info anyway. Smile
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Filter screen

Post  DirtyErnie on Sat Jul 28, 2012 11:33 pm

BTW anyone know if this is normal for the filter screen to look this way?!
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  SkidMark on Sun Jul 29, 2012 7:11 am

looks squashed to me like someones gripped it to pull it off, also the plastic 'legs' look like they are cracking(?), still as long as the filter mesh is intact it will still do its job.
avatar
SkidMark
XRR Freak

Joined : 2012-05-16

Posts : 321
Location : Liberia
XR650R Year : 2005

Back to top Go down

Filter screen

Post  DirtyErnie on Sun Jul 29, 2012 7:51 am

Yeah it does, but it's never been out of the tank before the swap. Low miles, one owner, me. I know I didn't do that so I guess the gas may do that to them?
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  Mauser on Sun Jul 29, 2012 9:12 am

Might be worth pulling the strainer off and checking the pipe inside.....

I couldn't work out why my reserve didn't last too many miles lol

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1830
Location : UK
XR650R Year : 2002

Back to top Go down

Strainer

Post  DirtyErnie on Sun Jul 29, 2012 3:03 pm

Wow! Is that a rust hole?
I'm planning on pulling the strainer soon and doing the "over the hump" siphon tube mod and just installing a new hose between the petcock and carb so I can install an inline filter. I should change the oring too while I'm in there.
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  Mauser on Sun Jul 29, 2012 3:56 pm

DirtyErnie wrote:Wow! Is that a rust hole?
I'm planning on pulling the strainer soon and doing the "over the hump" siphon tube mod and just installing a new hose between the petcock and carb so I can install an inline filter. I should change the oring too while I'm in there.

Not sure about rust as it's brass.....but whatever it was it rusted through; small work with soldering iron and it's good as new razz

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1830
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  SkidMark on Sun Jul 29, 2012 5:15 pm

that would be corrosion razz

non ferrous metal corrodes - ferrous metal rusts banana
avatar
SkidMark
XRR Freak

Joined : 2012-05-16

Posts : 321
Location : Liberia
XR650R Year : 2005

Back to top Go down

Shake down problem

Post  DirtyErnie on Mon Jul 30, 2012 3:48 am

Only one small problem to report on my ride today. I should have noticed this one right away during install....

Not a big deal, loosen the clamp and turn it, retighten. Good to go. Smile
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  xabntroop on Mon Jul 30, 2012 9:44 pm

Than you for probably the best "how to do it" video I have seen here! That exact tank, Rox risers and a "tall seat" are next up for me, of course that will be secondary to a BD dual sport kit if the state of Ca allows me to register my BRP of the road. Thanks again.
avatar
xabntroop
L Rider

Joined : 2011-02-22

Posts : 47
Location : Woodland, Ca
XR650R Year : 2003

Back to top Go down

re: 4.3 fitment with ov/size radiators+ fcr carb

Post  temporary kiwi on Mon Jul 22, 2013 9:26 am

ive just fitted my clarke 4.3 with chinese radiators+ a fcr carb, i had to bend the r/hand rad mt,to gain clearence around top rad hose, i also heat molded the tank to get clearance around carb [ which im converting to l/hand cable operation], ive also added a l/hand petcock which ill link up to r/hand tap via hoses, all good fun

temporary kiwi
XRR Jockey

Joined : 2013-04-10

Posts : 211
Location : waikato, new zealand
XR650R Year : 02

Back to top Go down

pictures?!

Post  DirtyErnie on Mon Jul 22, 2013 8:14 pm

Let's see the results of your labor! Post up some pictures of those modifications! Smile
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

fcr 43.5mx - left hand throttle conversion

Post  temporary kiwi on Tue Jul 30, 2013 2:17 am
















temporary kiwi
XRR Jockey

Joined : 2013-04-10

Posts : 211
Location : waikato, new zealand
XR650R Year : 02

Back to top Go down

over the hump mod ??

Post  xr honda to the max on Tue Dec 31, 2013 4:00 pm

l just found this topic and read it and all , same tank l'm installing on my 650r
Whats this he's talks about the over the hump mod
Quote "I'm planning on pulling the strainer soon and doing the "over the hump" siphon tube mod and just installing a new hose between the petcock and carb so I can install an inline filter. "

thanks mike
avatar
xr honda to the max
XRR Jockey

Joined : 2013-11-10

Posts : 201
Location : northern ontario
XR650R Year : 2004

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  xr honda to the max on Tue Dec 31, 2013 4:05 pm

this my red version of same tank , l received it yesterday , will install in spring -35 Celcuis last few days COLD . l find this topic great for my new tank wish l had fouund it earlier wouldn't of had to start my own tread.GREAT INFO
thanks mike
avatar
xr honda to the max
XRR Jockey

Joined : 2013-11-10

Posts : 201
Location : northern ontario
XR650R Year : 2004

Back to top Go down

siphon tube mod

Post  DirtyErnie on Wed Jan 01, 2014 6:03 am

xr honda to the max wrote:l just found this topic and read it and all , same tank l'm installing on my 650r
Whats this he's talks about the over the hump mod
Quote  "I'm planning on pulling the strainer soon and doing the "over the hump" siphon tube mod and just installing a new hose between the petcock and carb so I can install an inline filter. "

thanks mike

There's a trick a few guys on here have done to increase the ability of using the gas in the far side of the tank. They run a fuel line inside the tank "over the hump" to the far side from the petcock to drain that side first and then the petcock side is reserve. No tipping the bike to get the gas from the other side. Still haven't done the mod. Been having too much fun with the bike as-is. I'll see if I can post a link to that....
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  xr honda to the max on Wed Jan 01, 2014 6:09 am

thanks dirty Erinie
if you find link that would be great was thinking to do a second pet cock but it has to work or tank is no longer any good
mike
avatar
xr honda to the max
XRR Jockey

Joined : 2013-11-10

Posts : 201
Location : northern ontario
XR650R Year : 2004

Back to top Go down

siphon tube tank/petcock mod...

Post  dougc on Fri Jan 03, 2014 6:34 pm

xr honda to the max wrote:thanks dirty Erinie
if you find link that would be great was thinking to do a second pet cock but it has to work or tank is no longer any good
mike

I think this is the link we are talking about:

http://www.advrider.com/forums/showthread.php?t=409774&page=621

Jipperr's post about "trick tank"
avatar
dougc
L Rider

Joined : 2008-12-02

Posts : 42
Location : Stayton, Oregon, US
XR650R Year : 2000

http://www.dougc.com

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  xr honda to the max on Fri Jan 03, 2014 7:09 pm

thanks DOUG C
great will doo
mike
avatar
xr honda to the max
XRR Jockey

Joined : 2013-11-10

Posts : 201
Location : northern ontario
XR650R Year : 2004

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  DirtyErnie on Sun Jan 05, 2014 5:28 pm

That's the one, thanks!
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  xr honda to the max on Sun Jan 05, 2014 5:46 pm

where doo l get that fuel line that goes into tank from pet cock over the hump , which doen't fade away in fuel ??Would it be a good idea to put a check valve on it also not just a weight simular to a skidoo so no drain back . Would one get a air lock ?
just thinking out load

thanks mike
avatar
xr honda to the max
XRR Jockey

Joined : 2013-11-10

Posts : 201
Location : northern ontario
XR650R Year : 2004

Back to top Go down

fuel line

Post  DirtyErnie on Sun Jan 05, 2014 6:36 pm

I think it was MotionPro brand that the post referred to. Should be available at any motorcycle shop or easy to find online. I don't think it can empty from one side of the tankto the other, just an extension of the petcock fuel tube to the other side of the tank. Shouldn't need a check valve, one more thing to go wrong anyway IMO. Wink
avatar
DirtyErnie
XRR Jockey

Joined : 2012-03-24

Posts : 92
Location : Moses Lake, WA USA
XR650R Year : 2006

Back to top Go down

Re: Clarke 4.3 Gal. install

Post  Xrsaylor01 on Sat Jul 05, 2014 5:13 am

DirtyErnie wrote:BTW anyone know if this is normal for the filter screen to look this way?!

When I pulled my stock tank and installed my Clarke 4.3 my petcock and strainer looked just like this. So I'm guessing it's pretty normal.
avatar
Xrsaylor01
XRR Jockey

Joined : 2014-07-03

Posts : 54
Location : Berea, KY
XR650R Year : 2001

Back to top Go down
