Complete XRR Re-Jetting Procedure

Post  MA$TER_E on Mon Dec 24, 2012 6:50 am

Because one write up a day isn't enough, I'm doing another. I've been fussing around with jetting for a while now. I've been researching and reading, chatting on the phone and with guys in the shop, testing, fixing, testing some more and this is the nail in the coffin as far as I'm concerned.

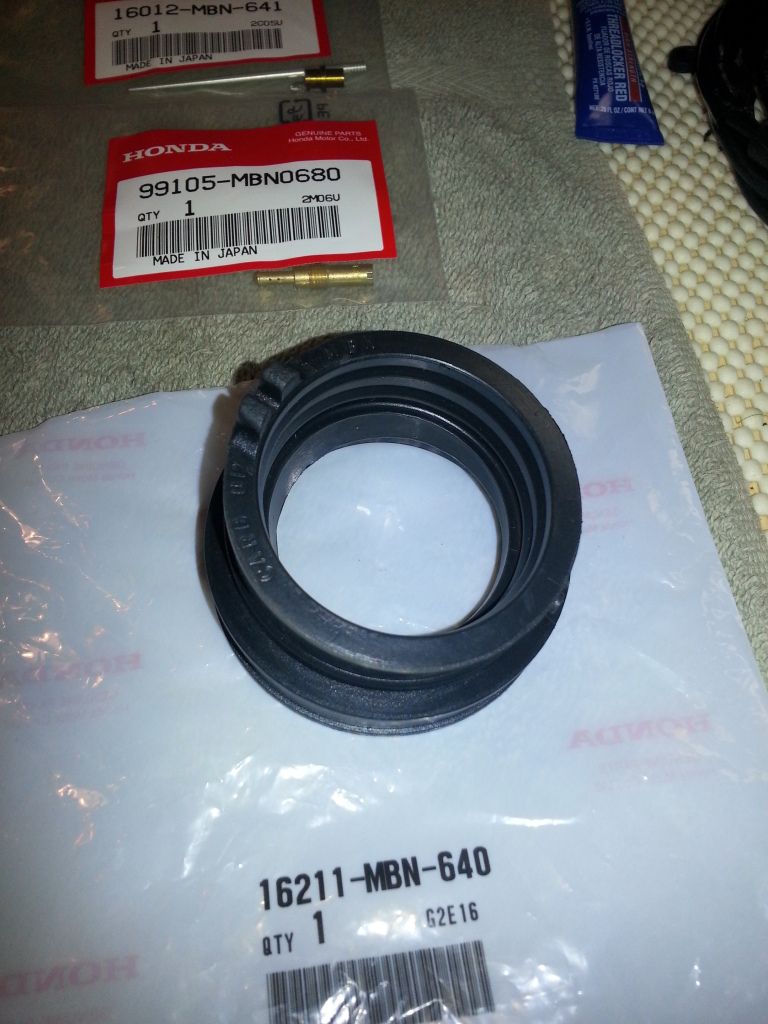

Optimal components.
68S Pilot Jet Part Number: 99105-MBN0680
B53E Needle Part Number: 16012-MBN-641
Carb Isolator: 16211-MBN-640
172 Keihin Main Jet

For the full story on all that check this out.
http://www.xr650rforum.com/t1644-honda-68s-pilot-and-b53e-needle-info

Also as a reference here's the XR650R Jetting Guide
http://www.xr650r.us/jetting/

I've used everything from 160 to 175 Mains and 60 to 70 Pilots. Fought mechanicals; which by the way there's no point in jetting if you're carb is leaking out of the mix screw. Make sure everything is in order. Replace EVERY o-ring on the carb and ensure its assembled correctly before you start playing with your jets. FYI Mix Screw, Spring, Washer, O-Ring and in that order. When I bought my bike I had no idea the washer was out of place and the O-ring was being eaten alive by the spring...

So; I've got by Pipeline Porter in hand and am ready to dig into this!
Bananatool

Step-1

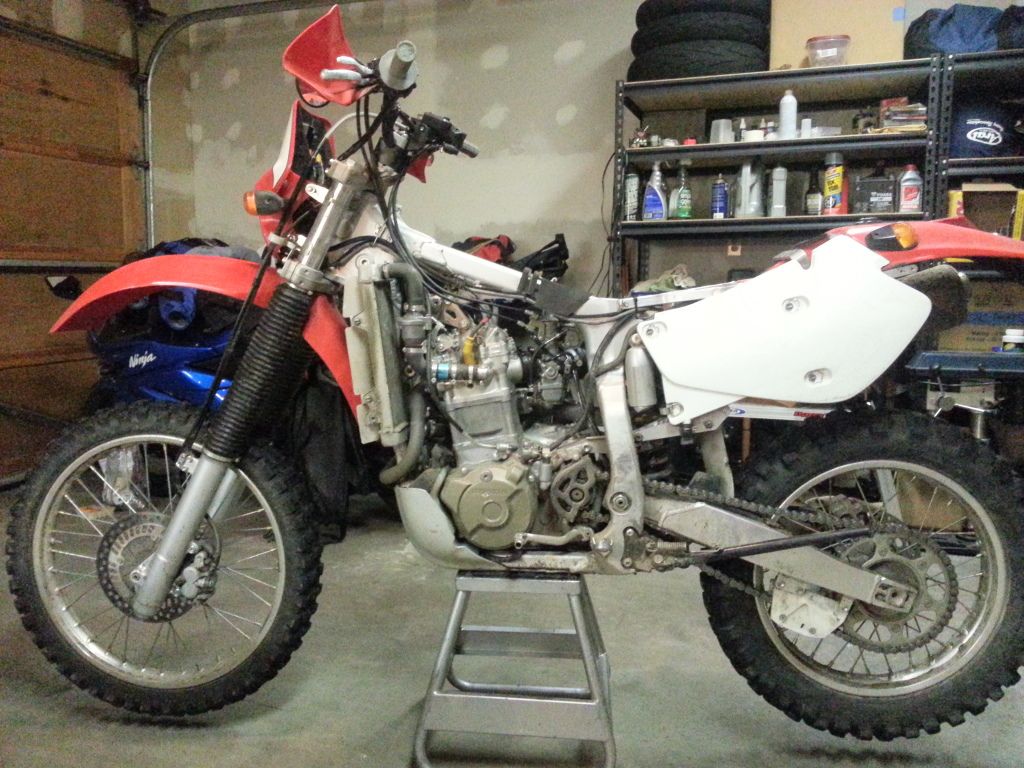

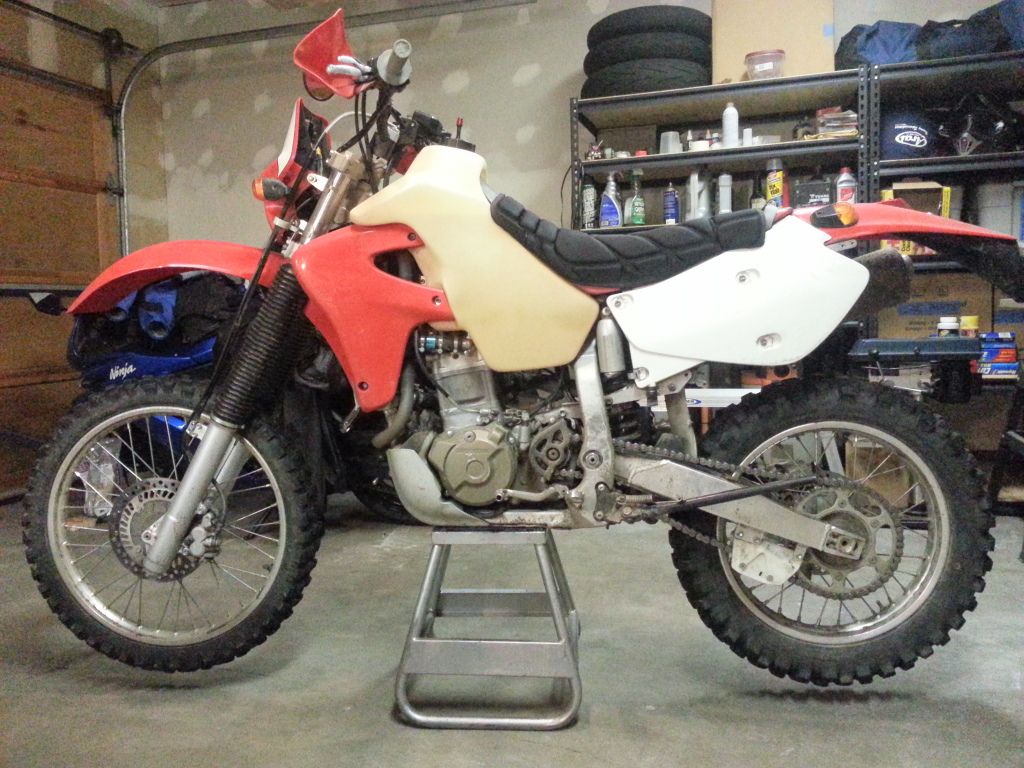

I'm going to assume you have the mechanical aptitude to take the tank, shrouds and seat off without me going into explicit detail. If you're struggling already, STOP before you hurt something. I like to turn the petcock off and run my bike until it dies. The point of this isn't so much to drain the fuel which I recommend you do but to warm up the rubber manifold so removal is a bit easier. You can just open the bowl drain and muscle the carb off it really doesn't matter. Just get everything away from the carb.



Step-2

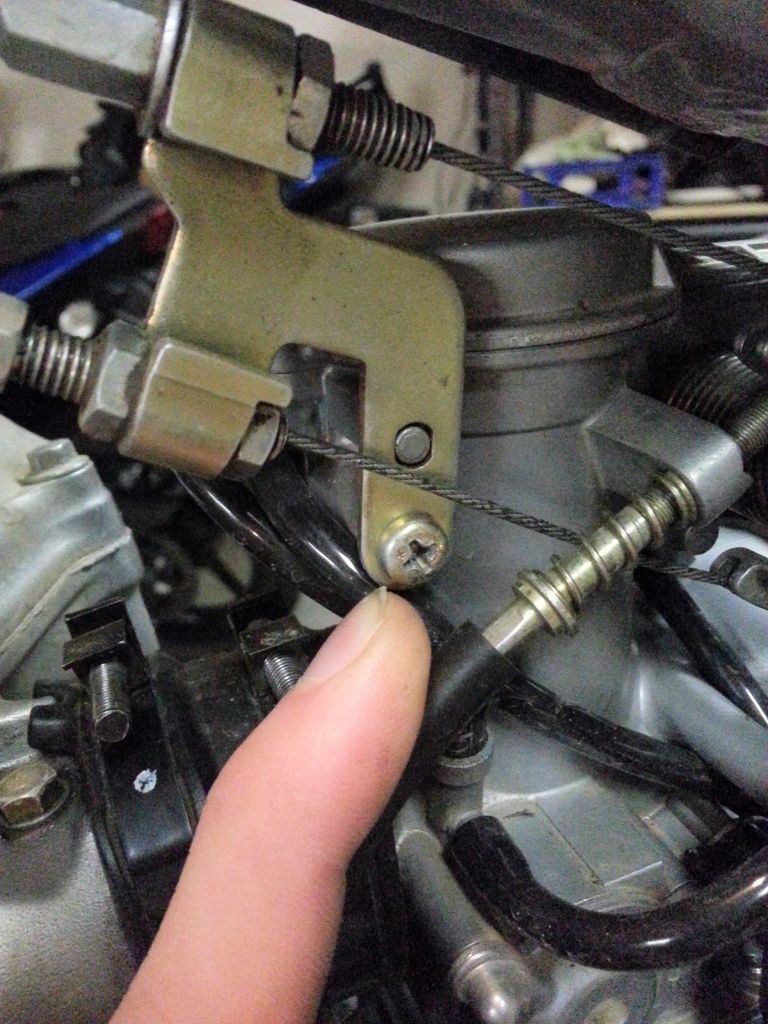

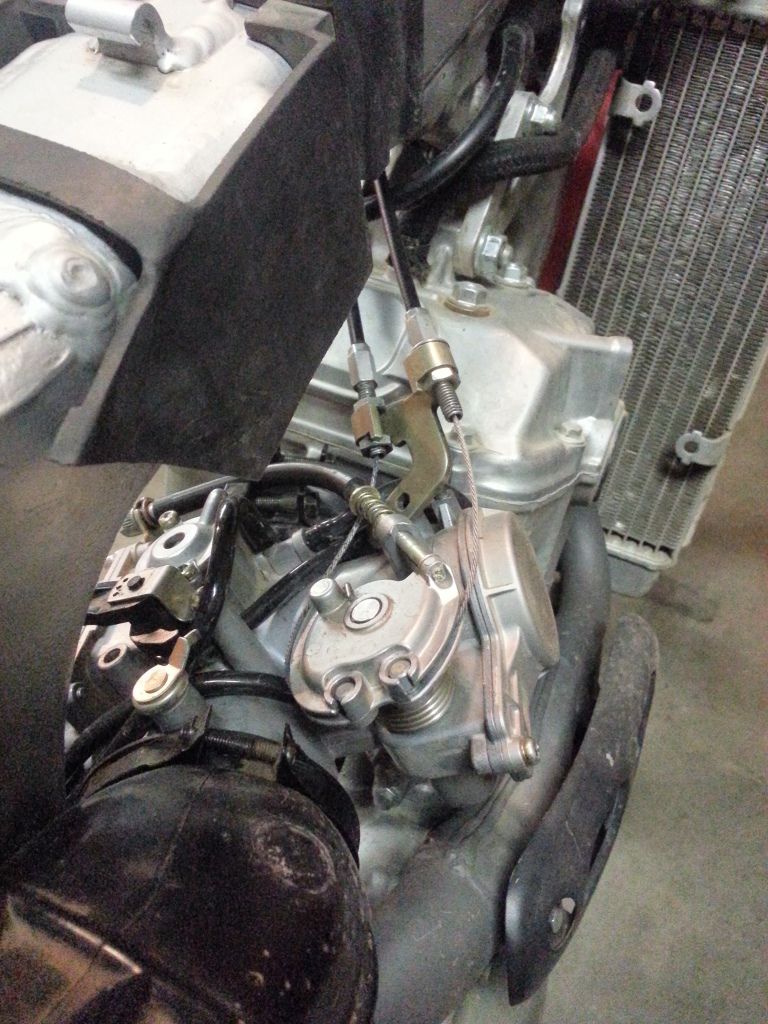

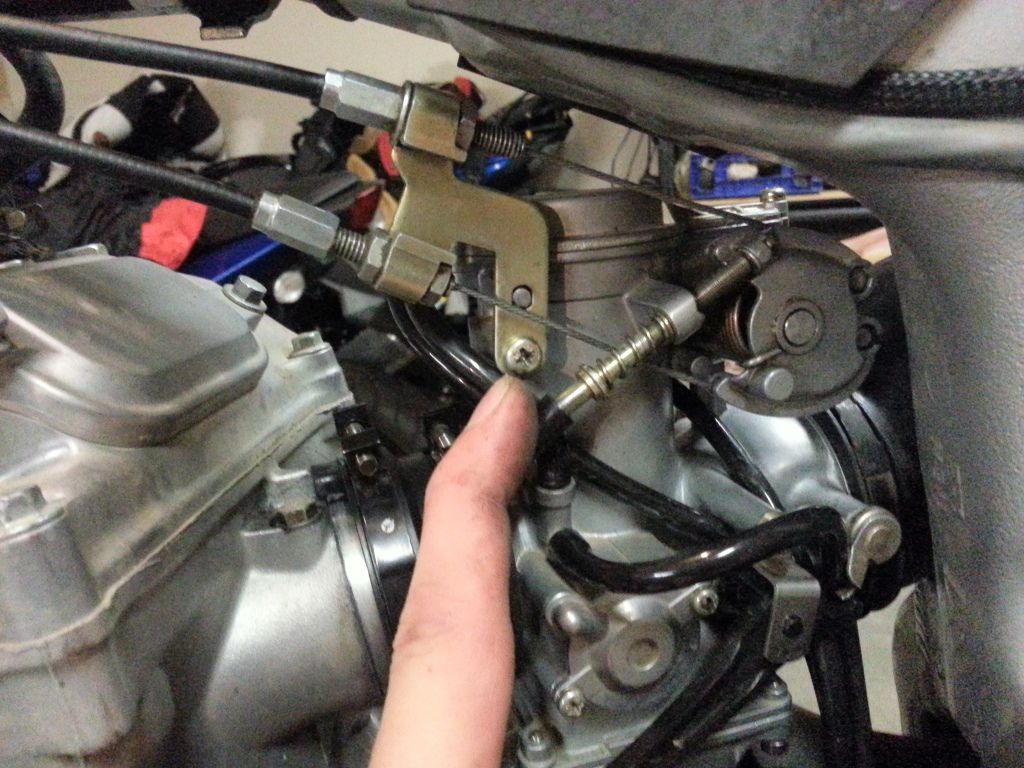

Here's a little tip. Simply remove the screw holding the throttle cable bracket and DO NOT touch the cable adjusters. That'll save you same time later.


Step-3
Next loosen the clamps so you can rotate the carb, then turn it over towards the pipe. This makes removing the throttle cables off the cam much easier. Once the cables are off hang the cables over a radiator to get them out of the way.



Step-4
Remove the carb. Sounds simple but it can be a pain. You may want to completely unscrew and remove the clamp from the airbox side here. We'll do that later but if you're struggling, do it now.

Now that the carb is off guess what, you're going to make a mess.


Step-5

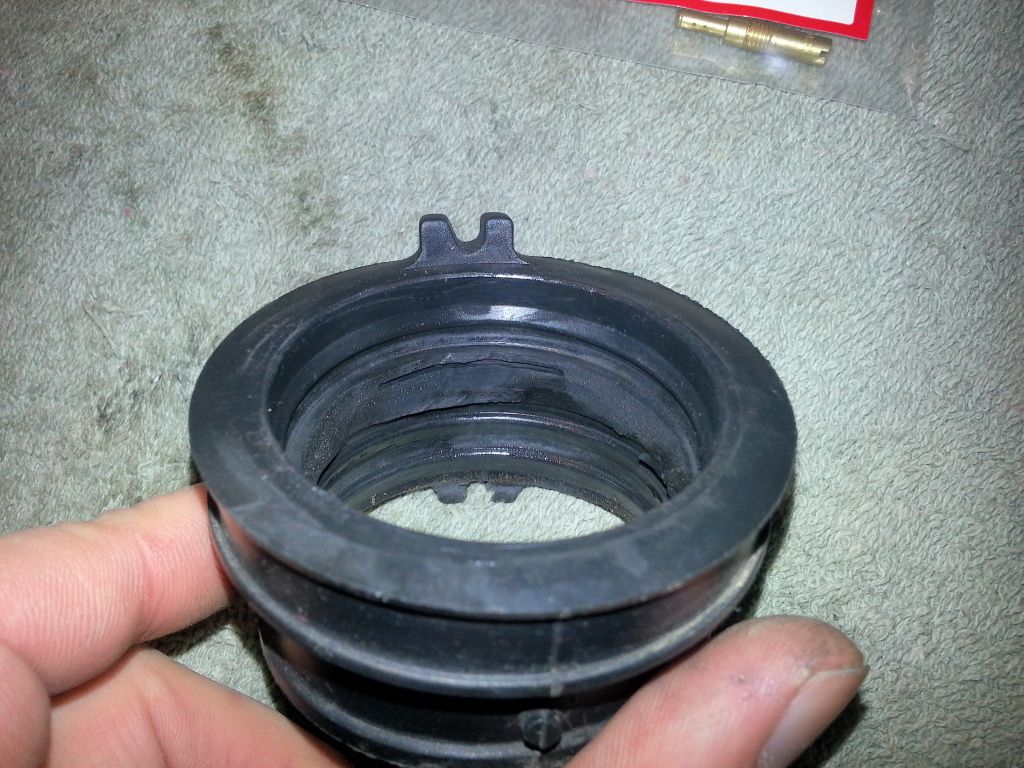

This is the OEM "carb isolator" manifold deal that the original owner chopped up. Its not horrible but we'll be replacing it with a real nice OEM one that hasn't been butchered while removing the square restrictor inside.

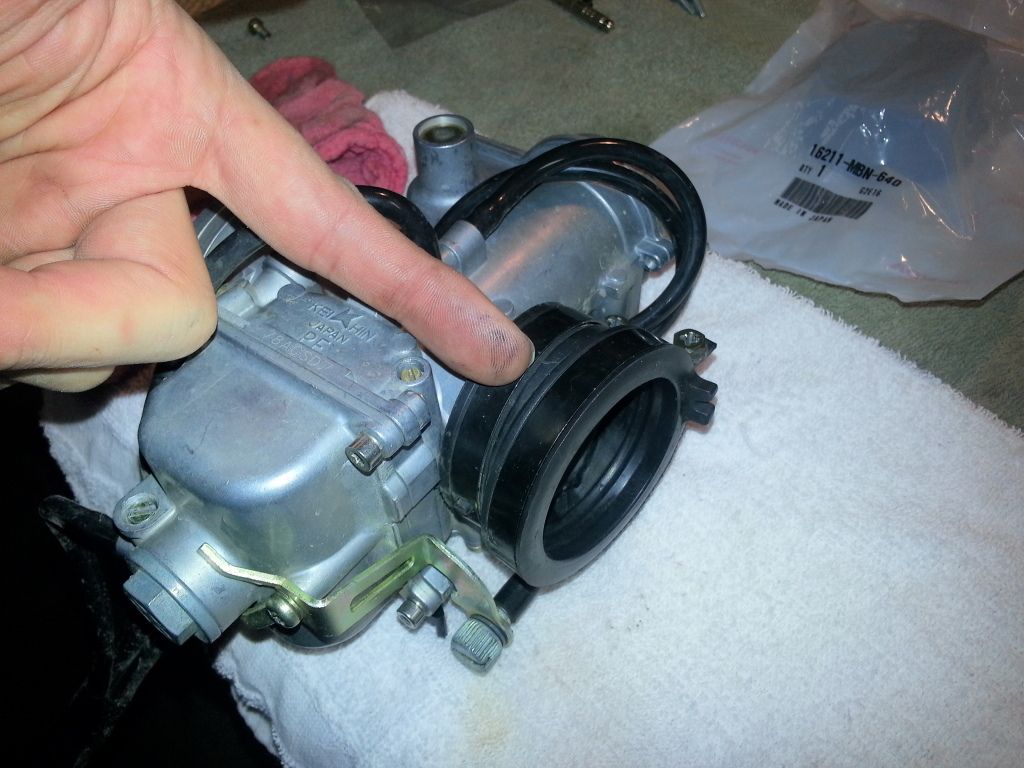

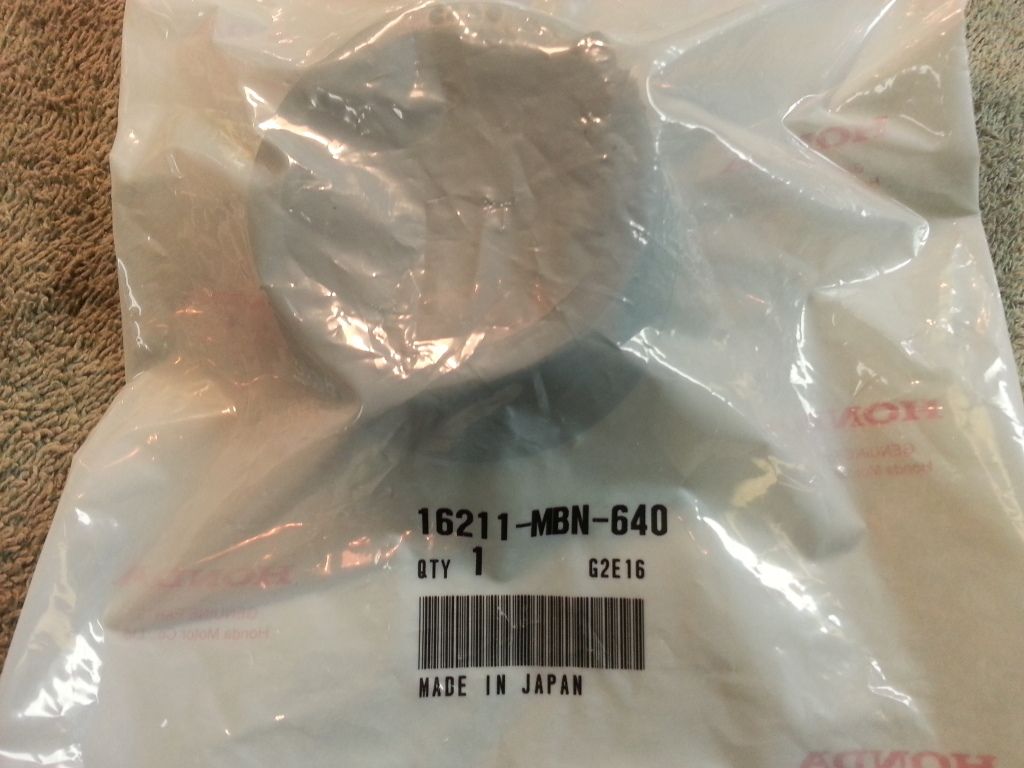

Here's the super fancy New OEM one we'll be replacing this one with.



YAY! More mess...


Step-6

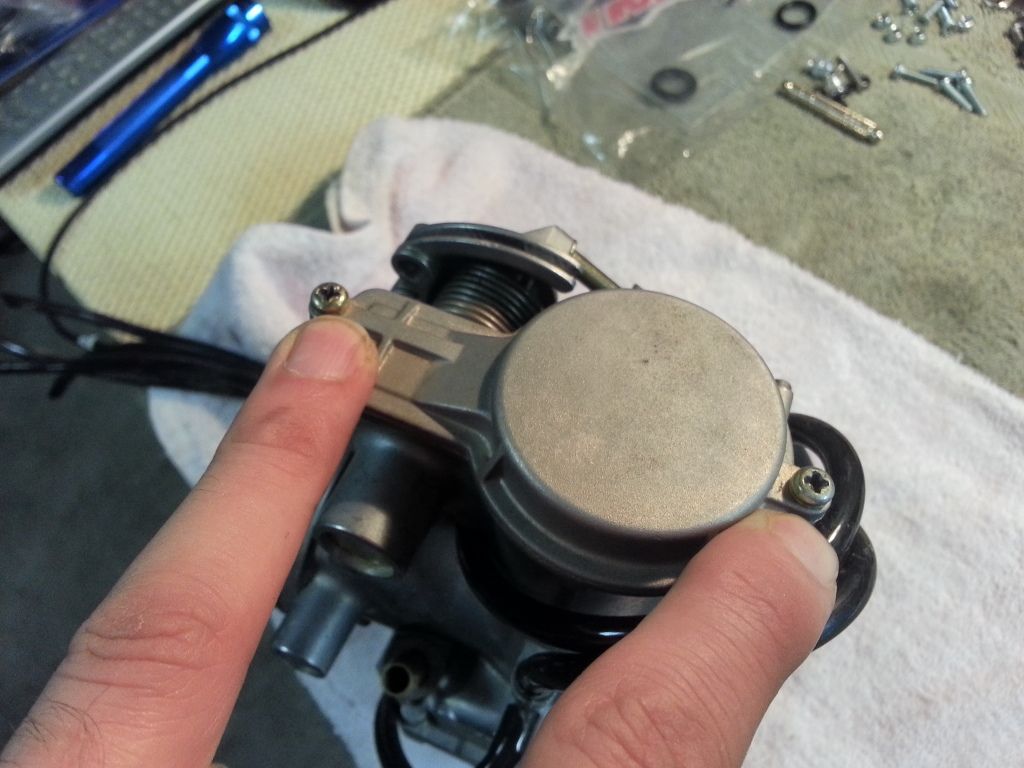

We'll start with the needle. Remove the two screws to the upper cap.


God I thought it was done... Guess not...


Step-7

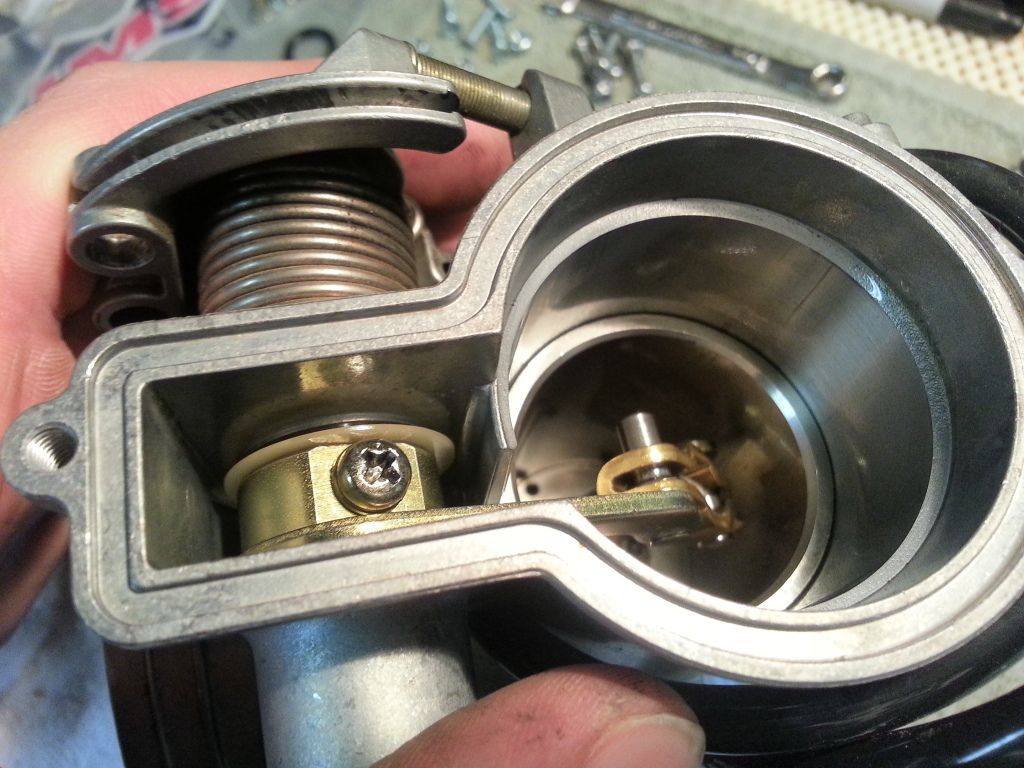

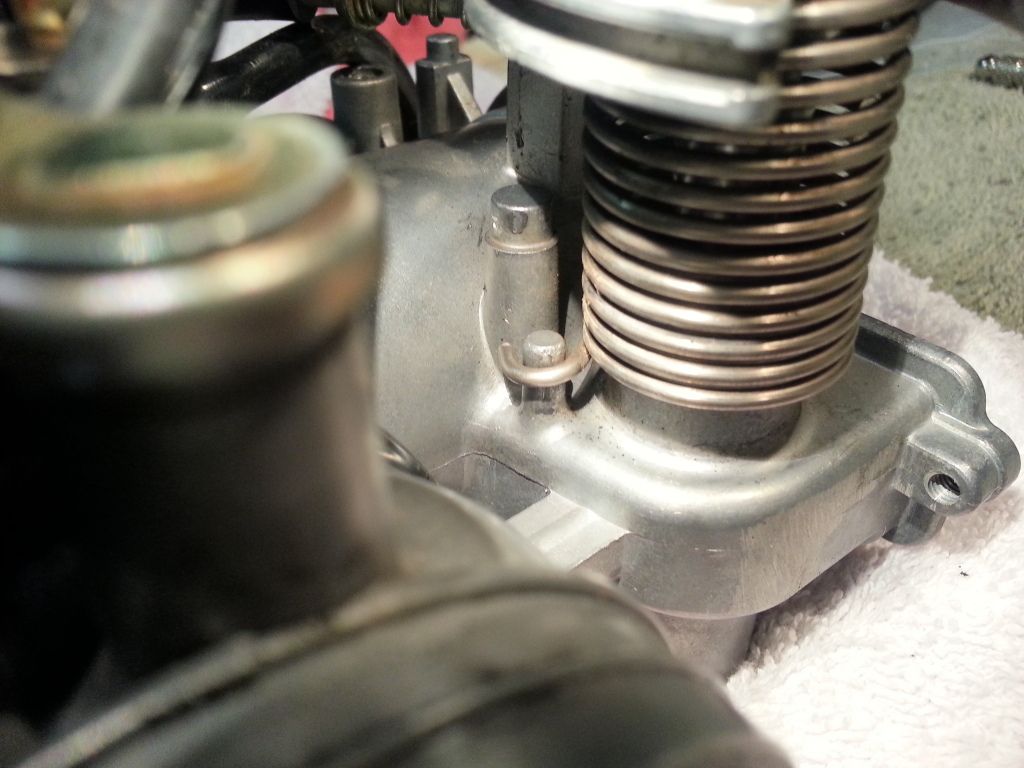

Once the upper cap and O-Ring are removed remove this screw. Now the whole shaft can slip right out. DO NOT mess with your idle adjustment. We want to leave that alone to make it easier to put back together. When you pull the shaft out (try to stay with me BRP smile perverts...) the spring will unwind. Don't worry, this is a piece of cake to put back together.



Step-8

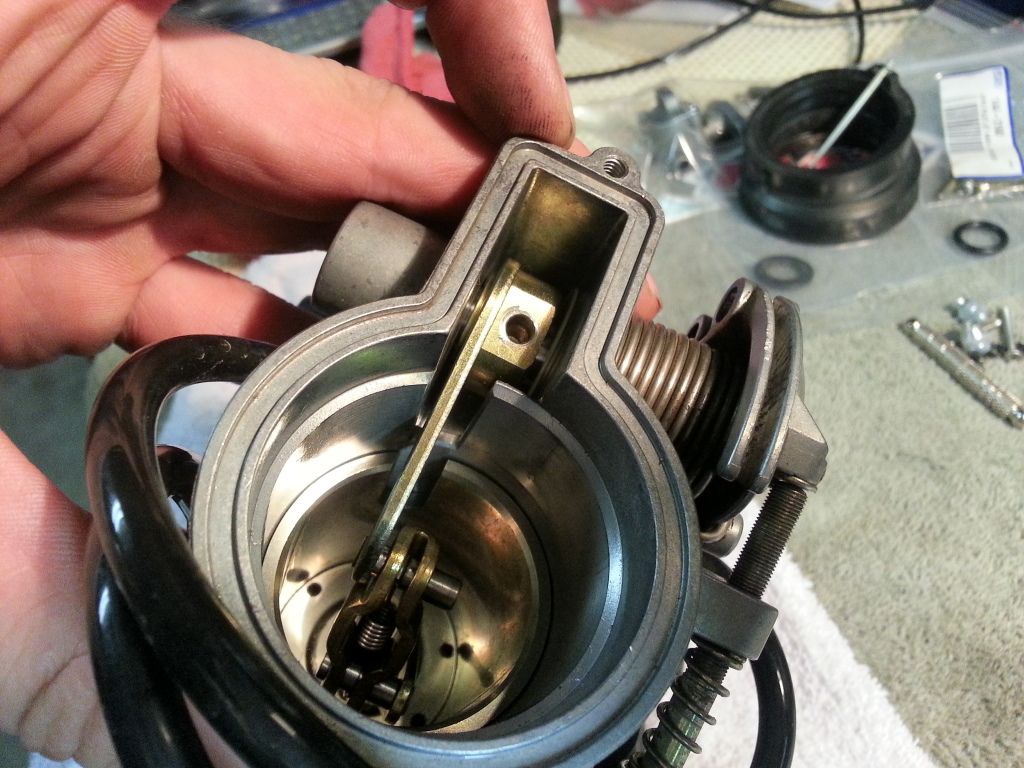

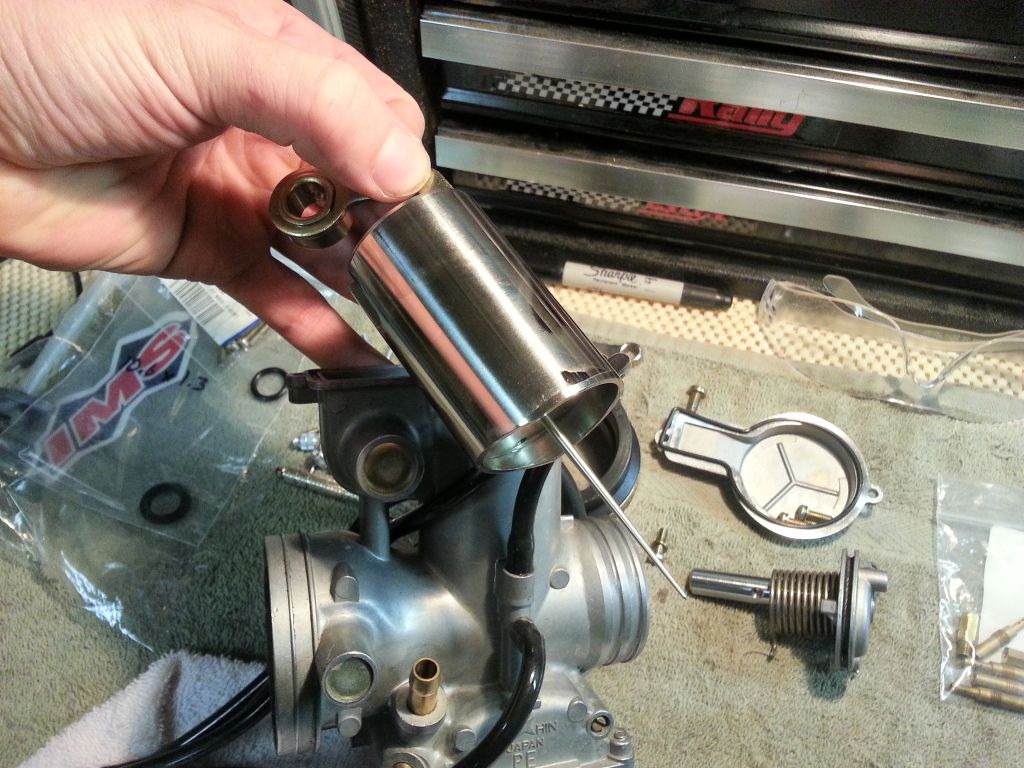

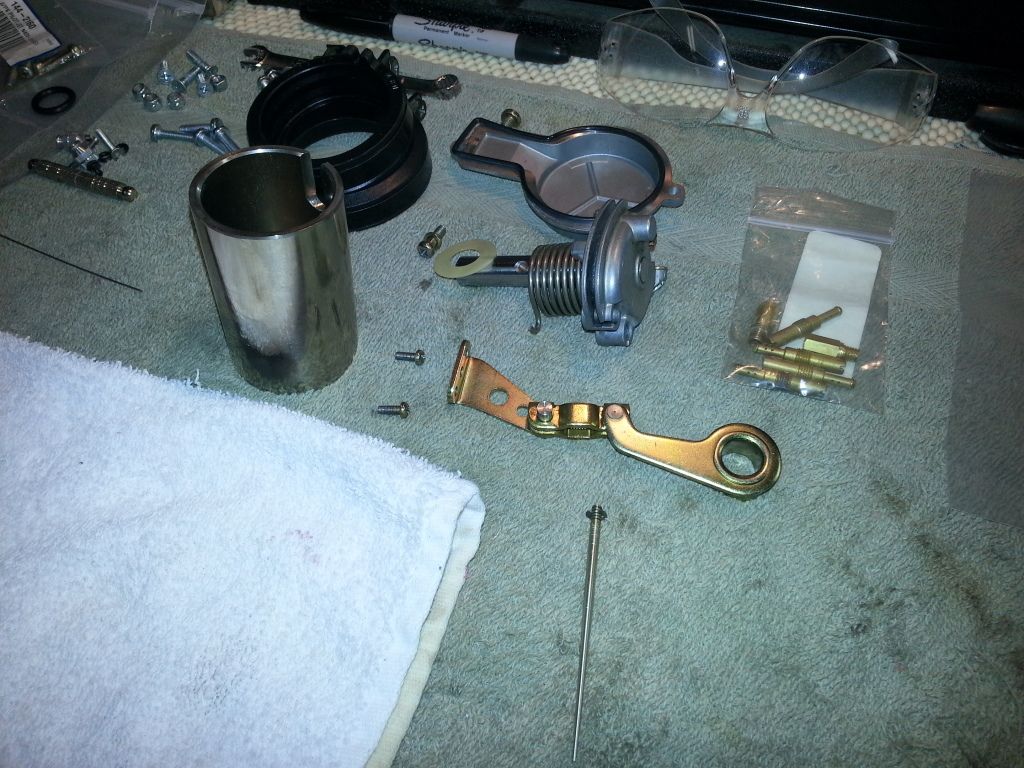

With the shaft removed the throttle valve and needle come right out. Take note of the little plastic washer. Its important and you don't wan't to put it in on the wrong side or lose it.



REALLY! Wow there was a lot of fuel in there. Probably should have drained the bowl...


Step-9

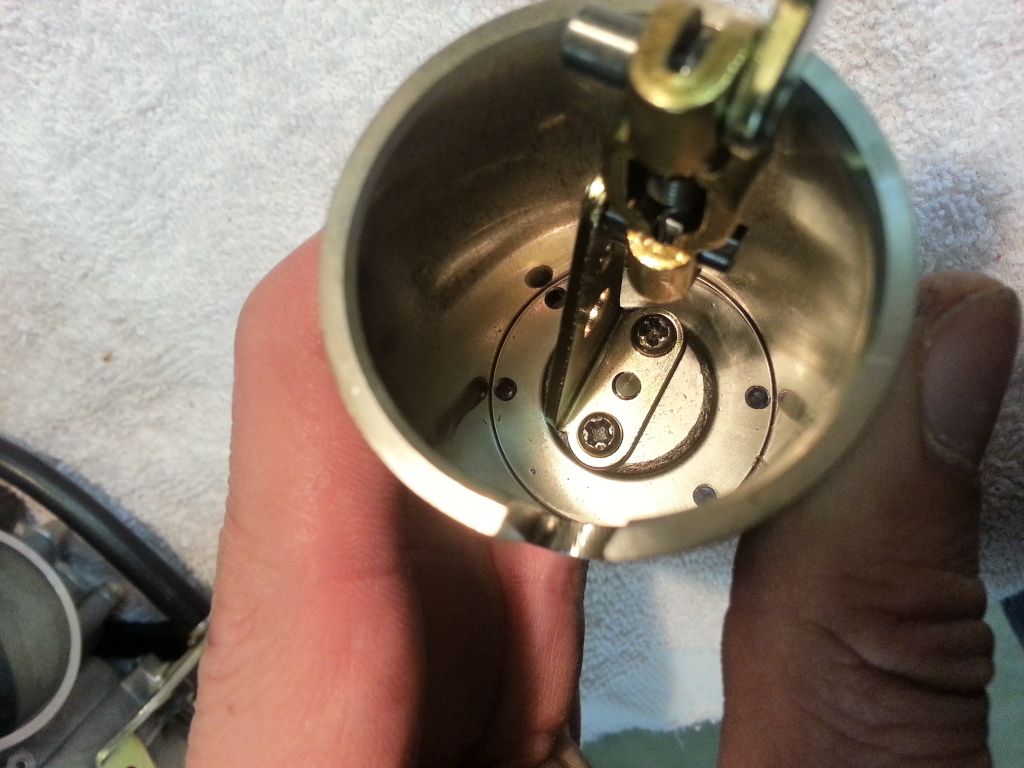

Okay, now down inside of the throttle valve remove the two screws holding the arm in. Do yourself a favor and do not take the arm apart. There's no need and its a pain to put back together. It only goes in one way with the slot on the throttle valve so fret not about assembly.


Step-10
Once the arm is out the needle can be removed from the throttle valve.


Step-11

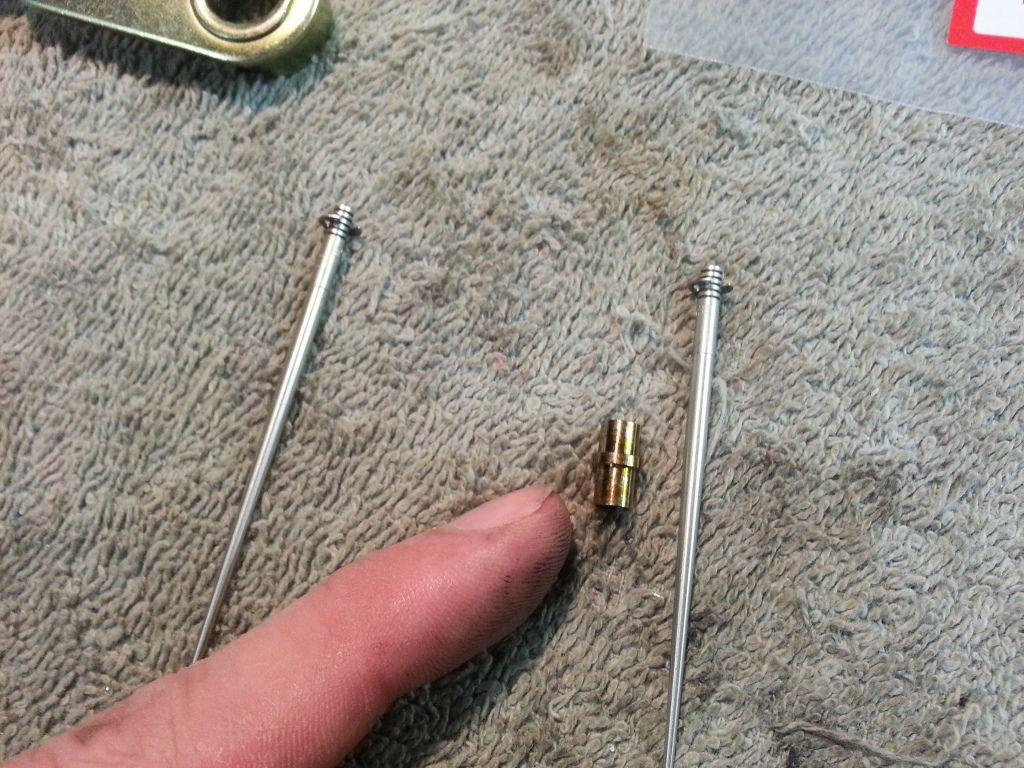

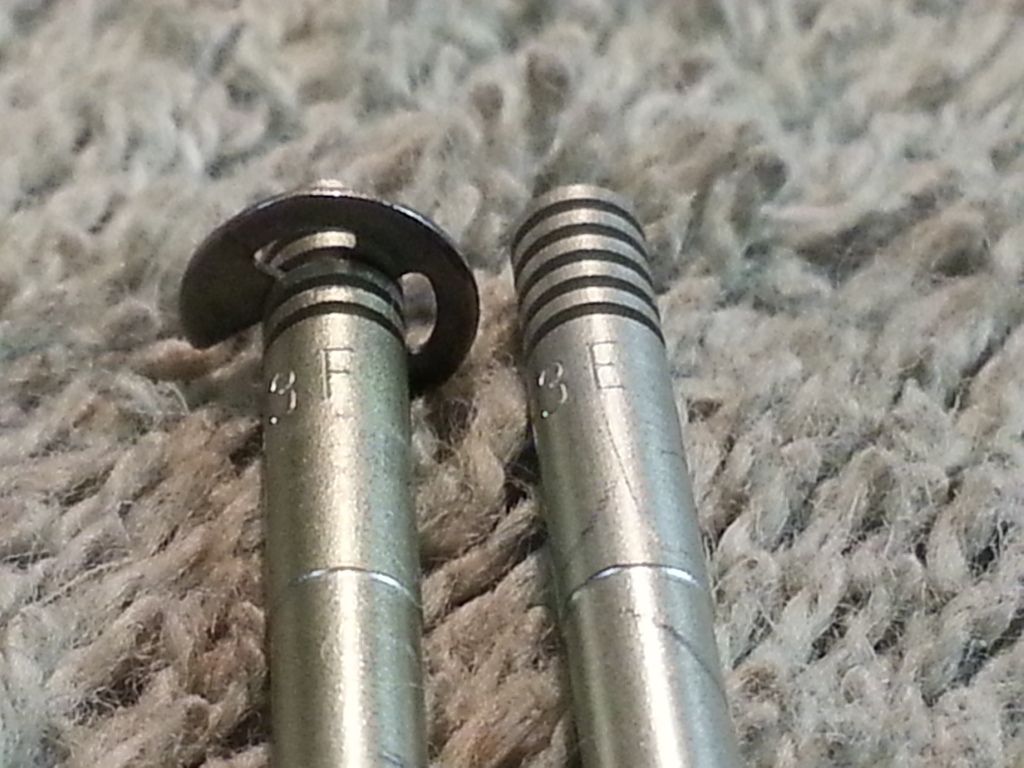

Installing the new needle is a piece of cake. On the new needle put the clip on in the third groove down from the top.

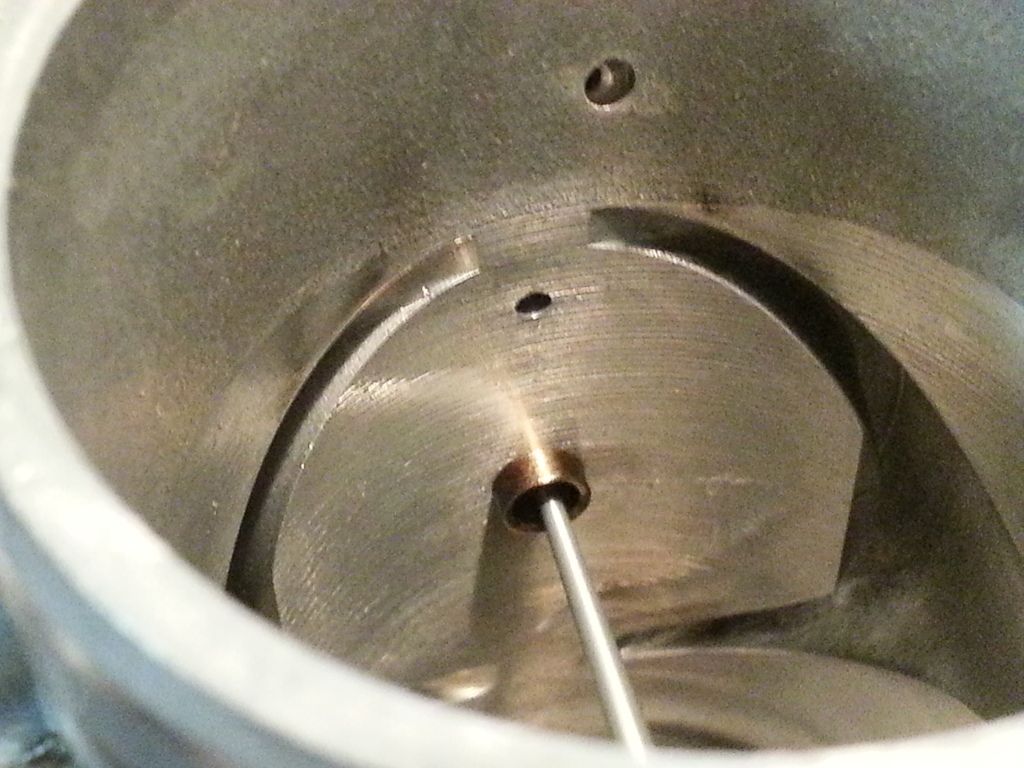

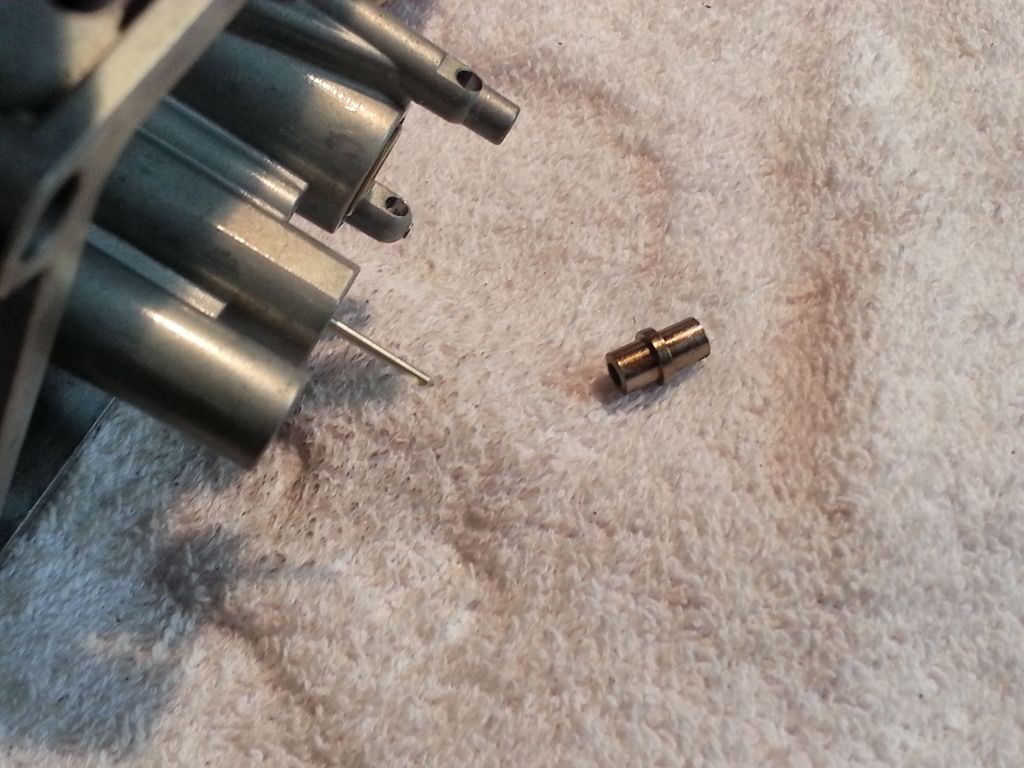

DO NOT worry about this little guy just yet. This is your needle jet and we'll get to it when we take the bottom of the carb apart.


Step-12
Drop the new needle with the clip in the 3rd slot from the top back into the throttle valve and re-install the linkage arm back into the bottom of the throttle valve with the two screws. Note the little plastic washer and what side of the linkage it goes on. Also the linkage arm only goes through the throttle valve one way so if its not working, turn it around.


Step-13

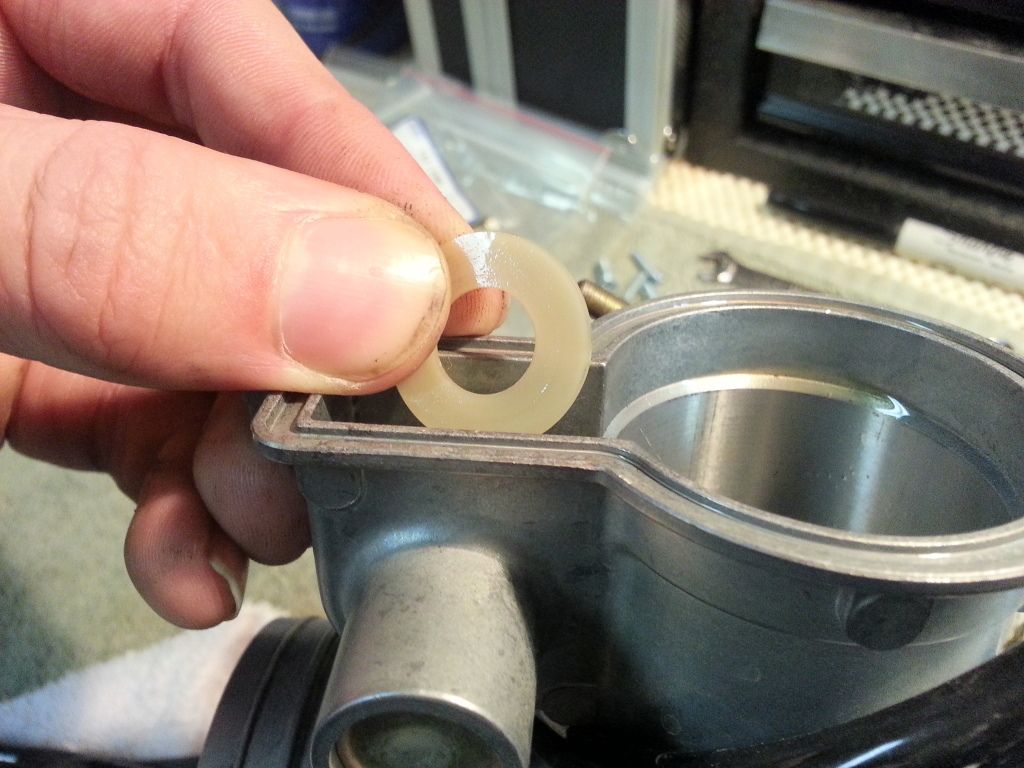

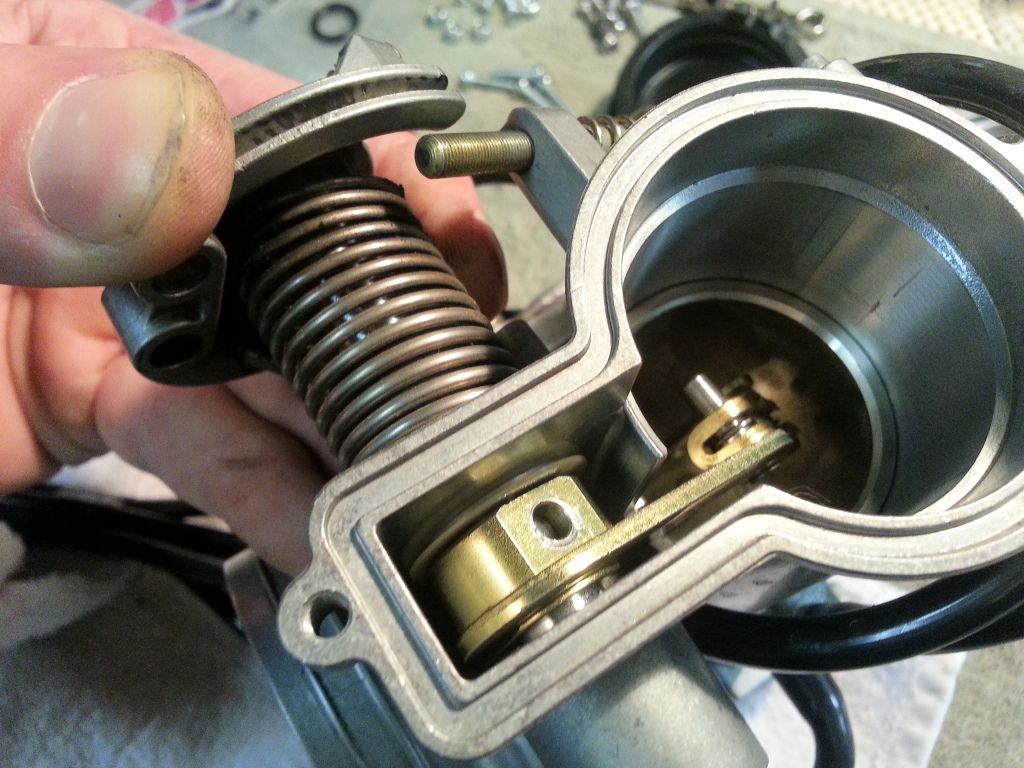

Line up the washer and linkage then slip the shaft in. This is the fun part that seemed scary before. Hook the spring on its stop with one hand and pull the cam out a bit to clear the idle adjustment stop. Rotate the cam around winding up the spring until the flat on the cam for the idle screw lines up with the idle screw then slide the shaft all the way in.


Step-14
If you didn't touch the idle screw the screw holes to tie the linkage arm to the shaft will line up perfectly. Just put the screw back in there, the O-Ring and upper cap with the two screws and the upper half is done. Grab another beer and lets dig into the lower half now.



Step-15

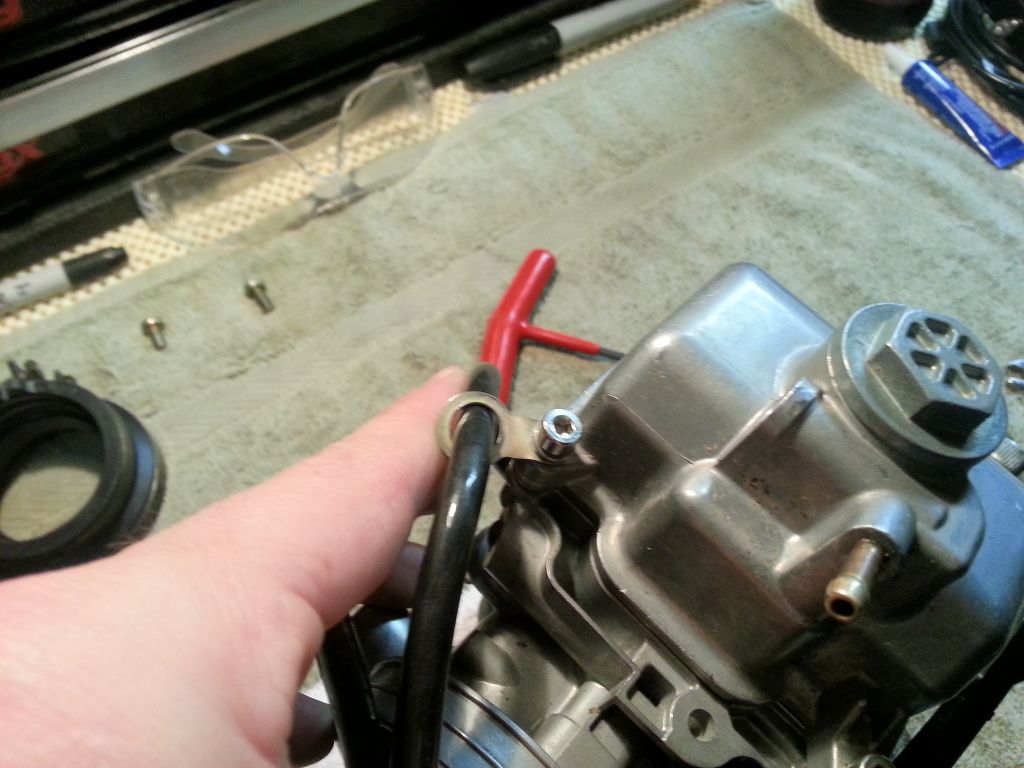

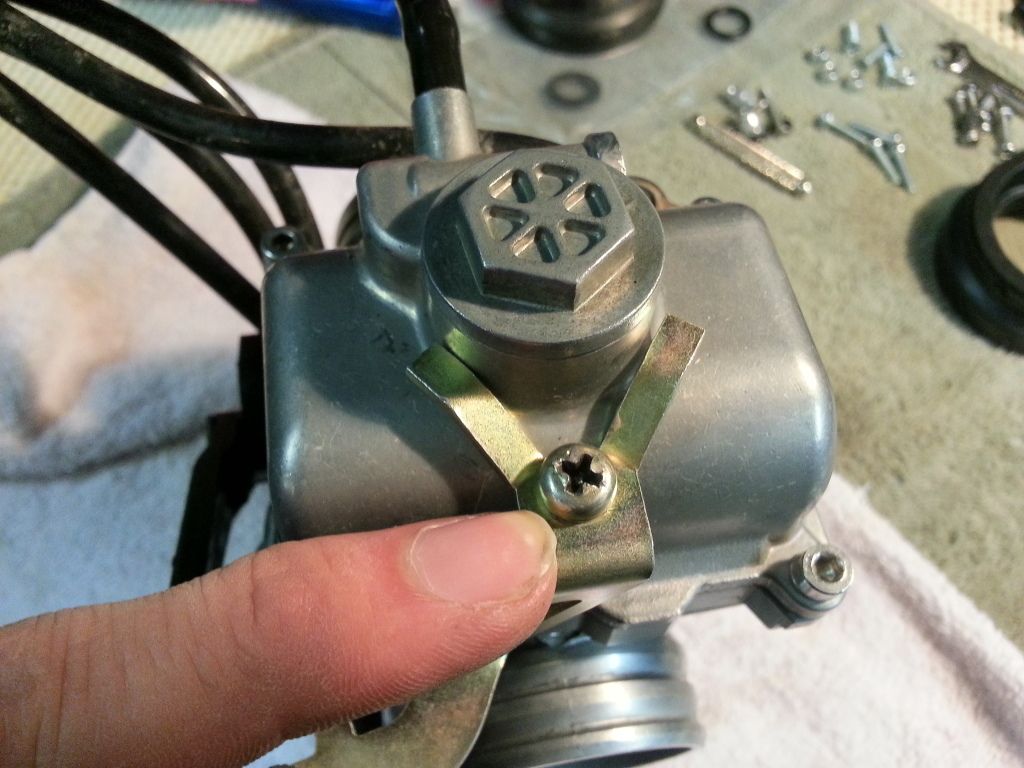

Remove the screw for the idle screw adjustment bracket and the bowl drain vent tube.



Step-16

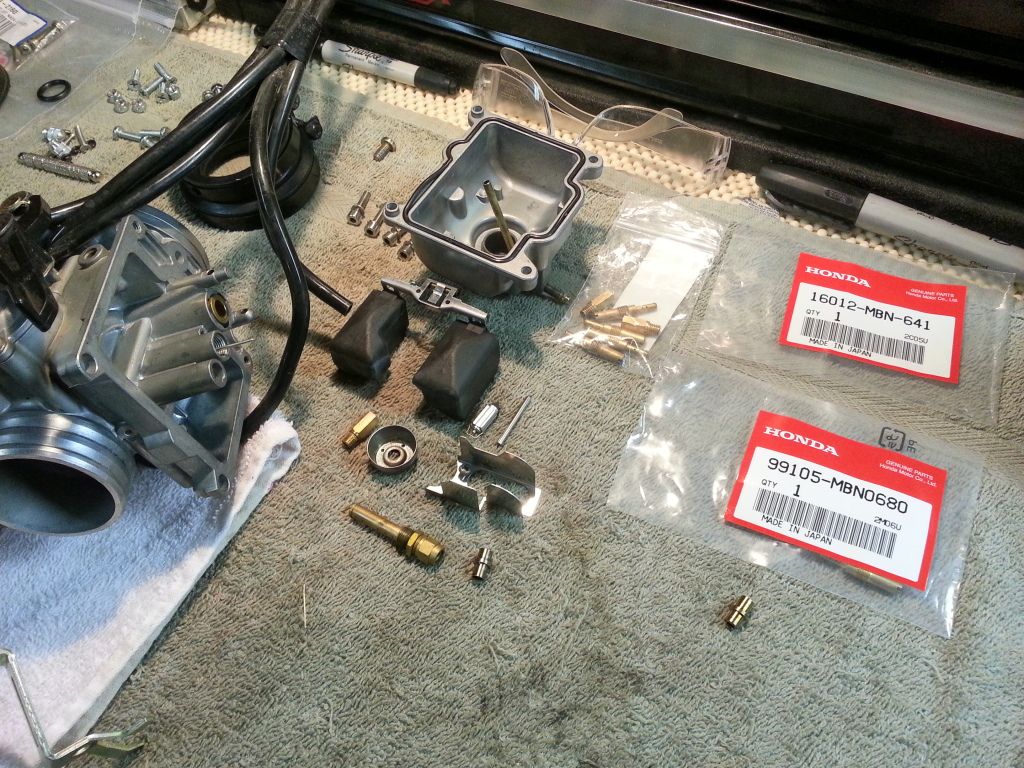

Next remove the 4 float bowl screws and remove the bowl.


Step-17

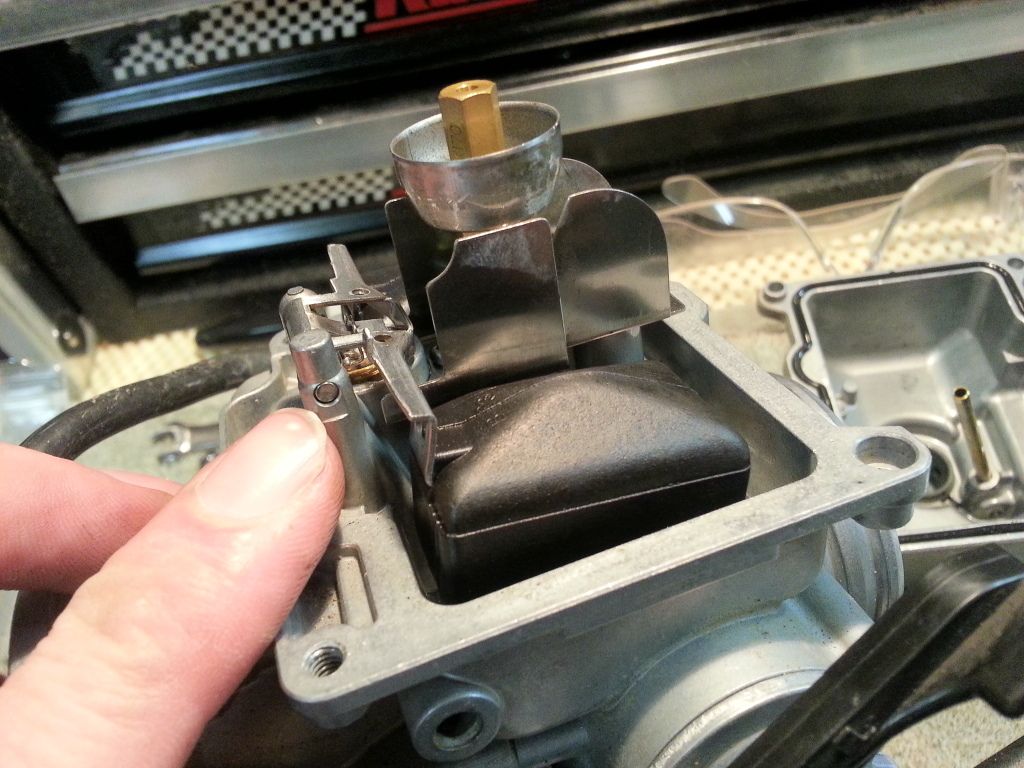

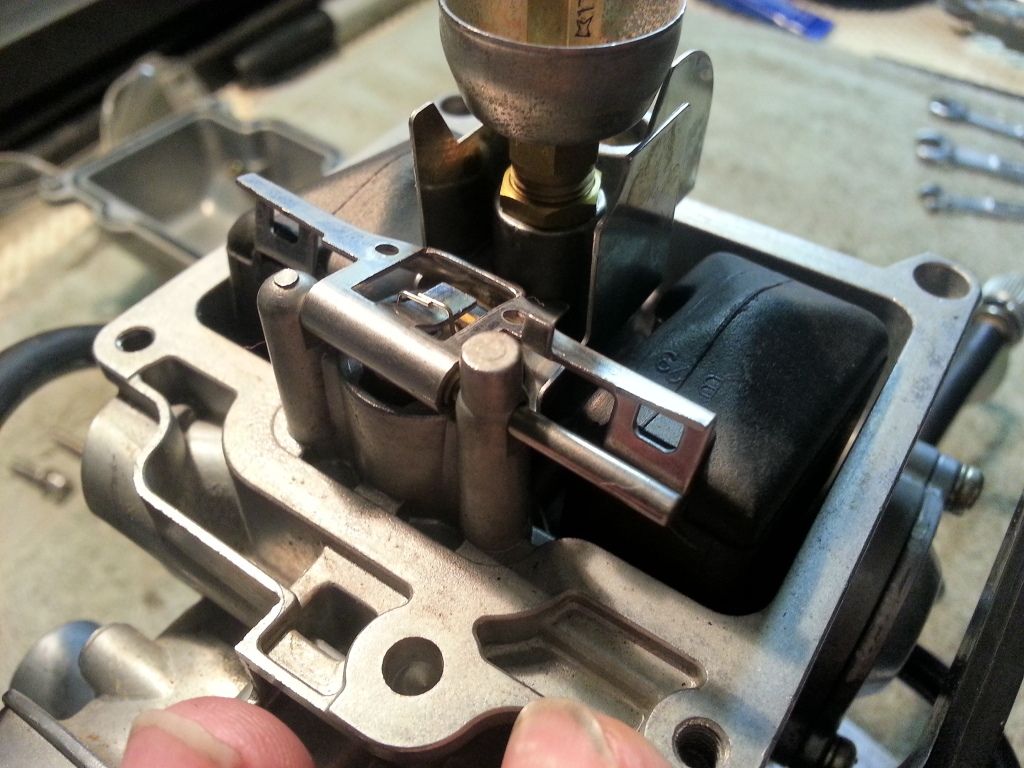

With the bowl removed, push the float pin out and remove the floats and the needle. Be careful with this stuff its fragile and bends easily.


Step-18

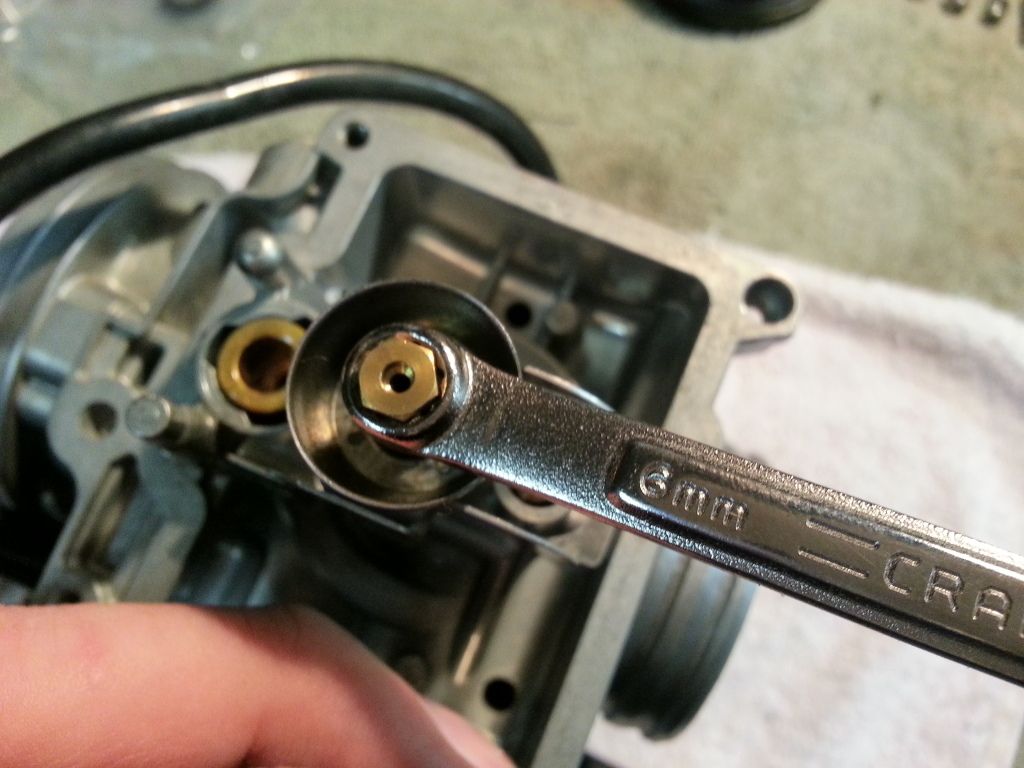

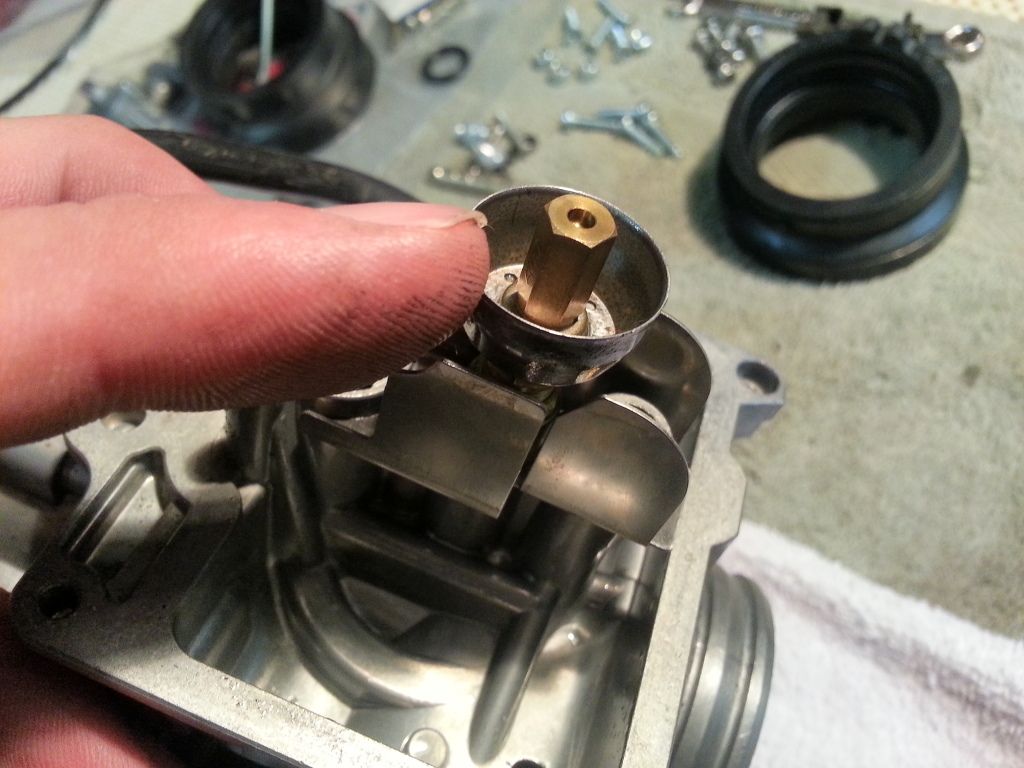

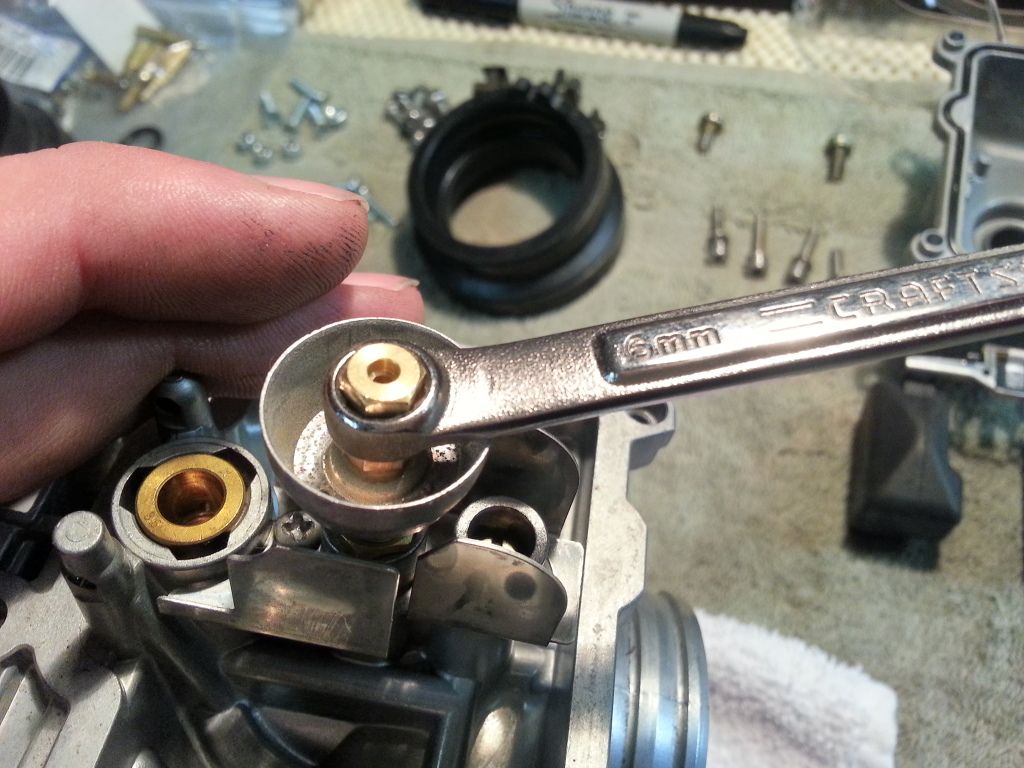

With your 6mm wrench remove the main jet and the little bowl shaped jet holder.



Step-19

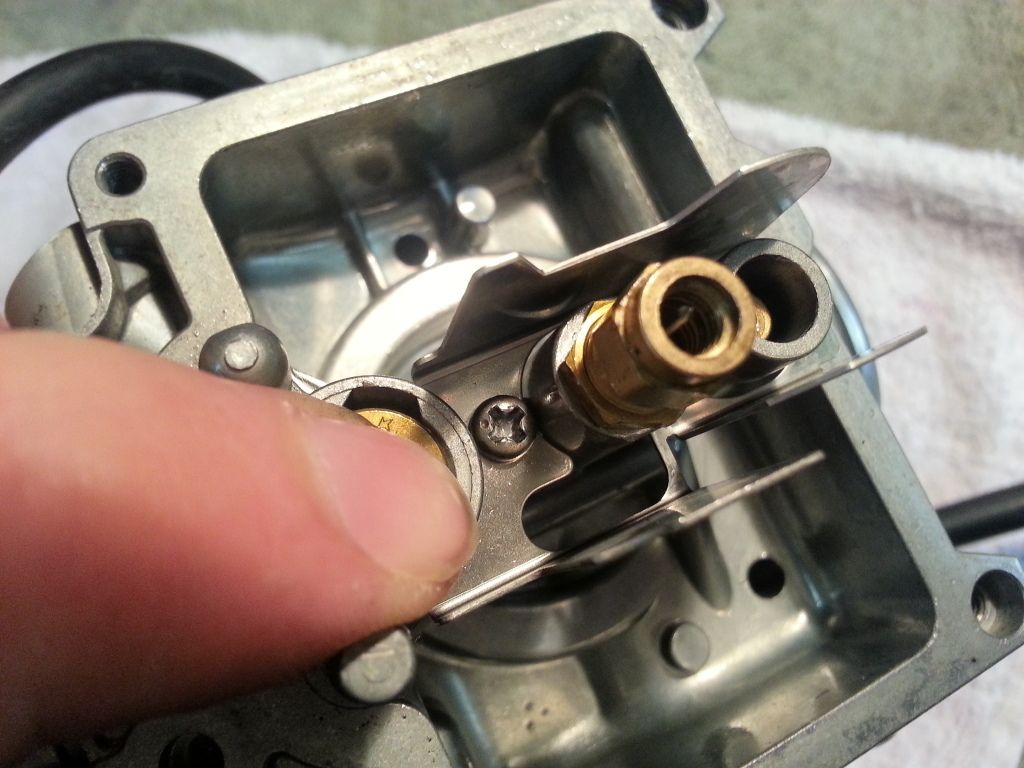

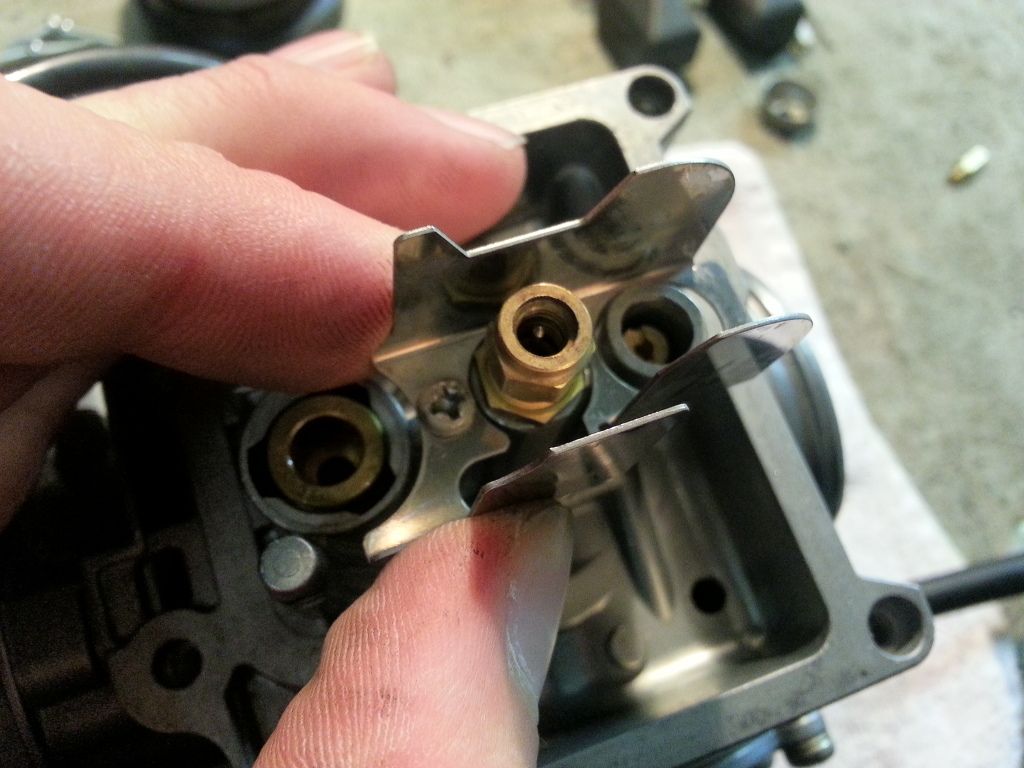

With the main jet removed remove the little screw and the little buffer plate.


Step-20

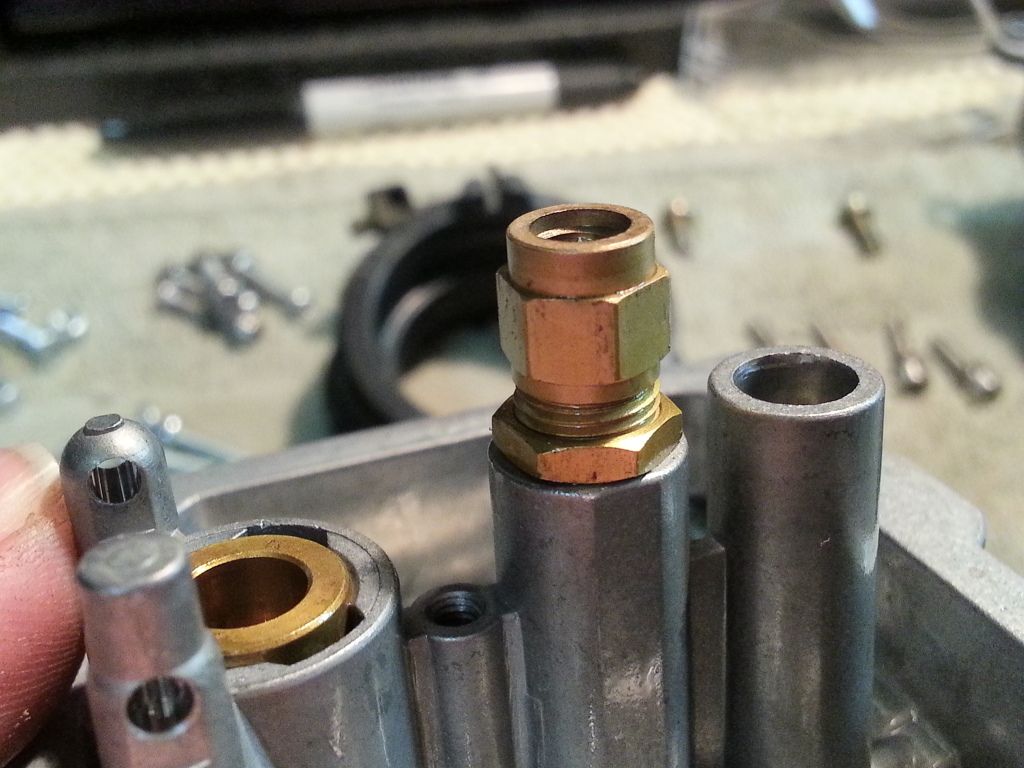

Now that the buffer is out of the way loosen the lock nut with your 9mm wrench then remove the needle jet holder with your 8mm wrench.


Step-21
BE CAREFUL! I REPEAT, BE CAREFUL!!! You know what folding a nail over a 2x4 looks like? Don't do that to your new needle. Being very careful not to bend the needle turn the carb up and give it a shake. The old needle jet should fall right out. If it doesn't you can lift the throttle valve by hand and use your finger to coax it out. If you're wondering, the answer is yes. The needle jet does go in a certain way. I'll be pointing that out soon.



INTERMISSION
This marks the beginning of putting the carb back together. Everything should be neatly laid out and be making sense to you. If throwing everything in a can makes sense to you have at it. But I like things being in order and neat.


Step-22

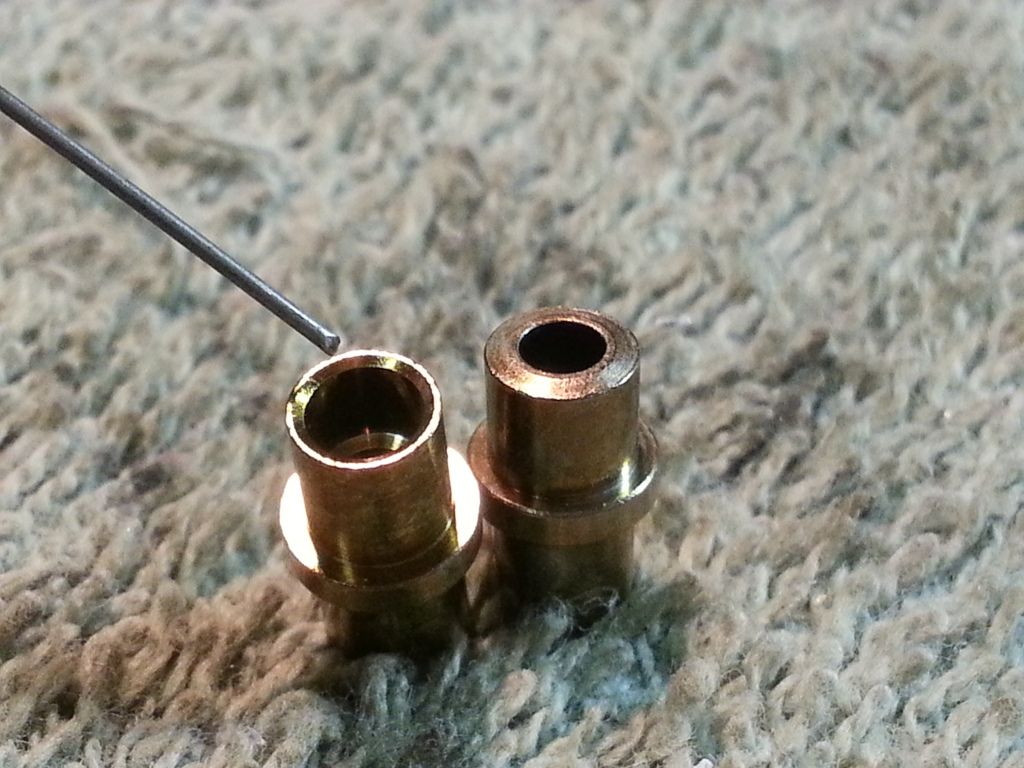

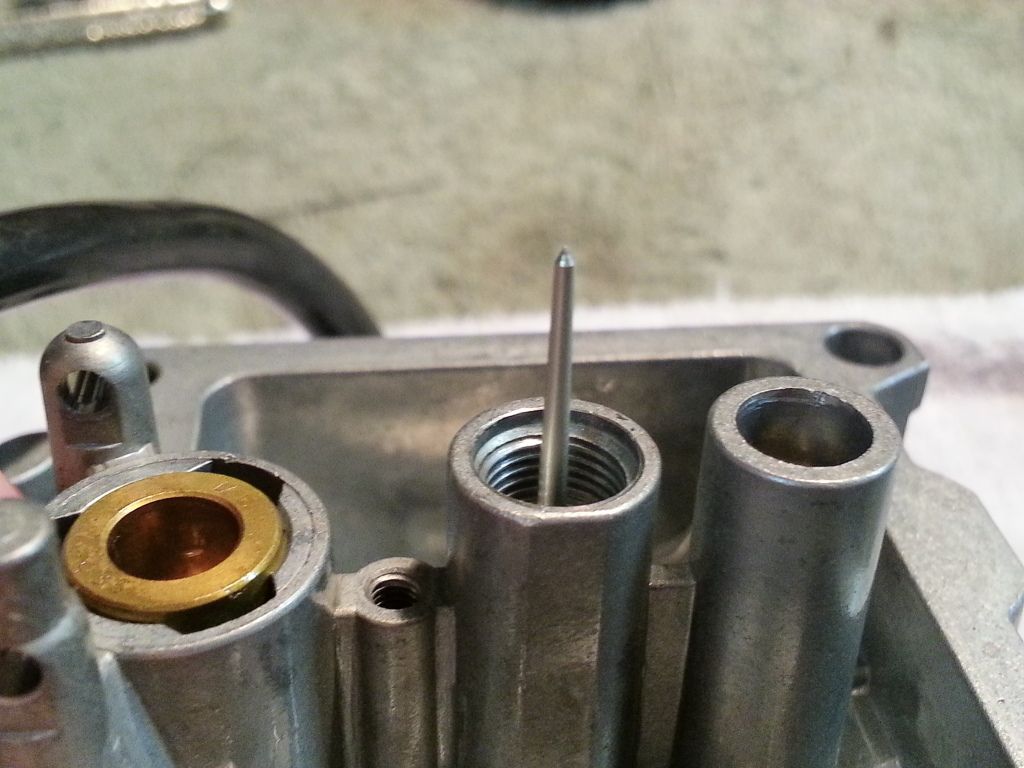

Installing the new needle jet. The side with a narrow rim being pointed out goes up towards the needle. The side with a small hole and a large rounded flange goes towards the bowl.


Step-23
Install the Needle jet holder and lock nut. Make sure that the needle jet is in the correct orientation and completely seats. It should stick up into the carb. As long as the needle jet is completely set tighten the needle jet holder down then the lock nut.



Step-24

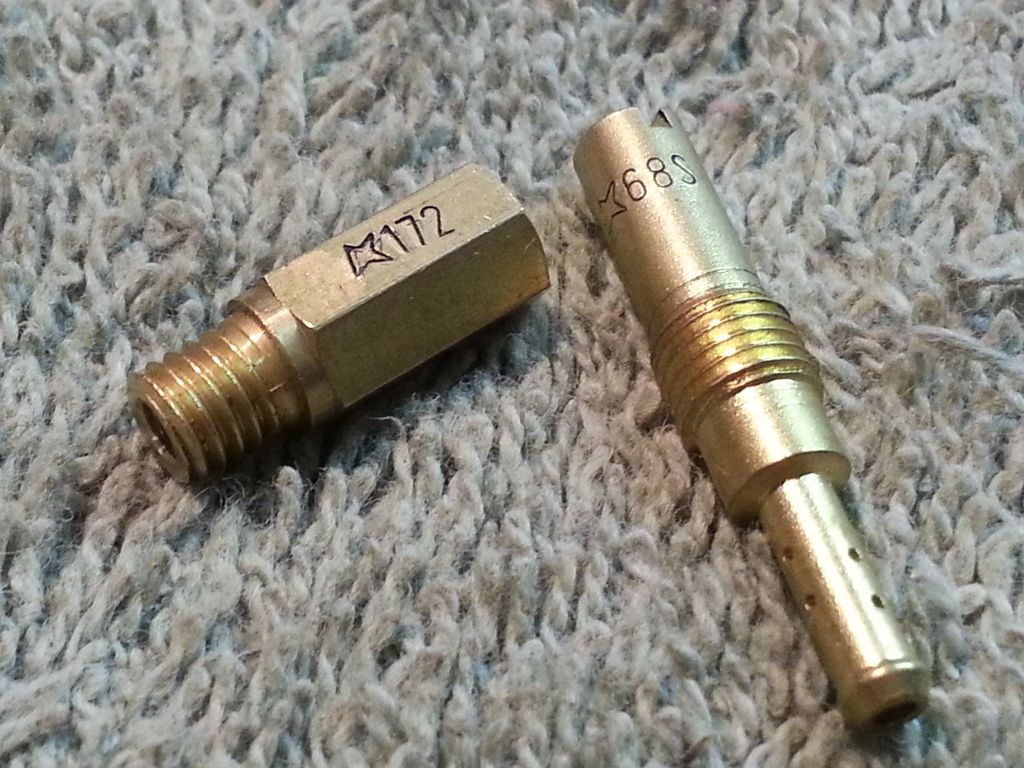

The pilot jet! My BRP finally gets to meet the infamous 68S. Remove the old pilot jet and screw in the new one. Below I've laid out the two jets I plan to use. Consult the XRR jetting guide for the jetting that'll be best for you.

http://www.xr650r.us/jetting/




Step-25
Re-install the baffle with the single little screw.


Step-26
Install your new Main jet and the bowl shaped jet holder.


Step-27
I'm not going to go into details about how to set your float bowl height. Just know that the float level should be set to 16mm (0.63 in) per the manual. With that in mind re-install the floats and valve with the pin. Make sure the pin is completely installed.



Step-28
Install the float bowl and O-Ring. Take note of the little ring that helps keep your vent tube from melting on the exhaust pipe.


Step-29

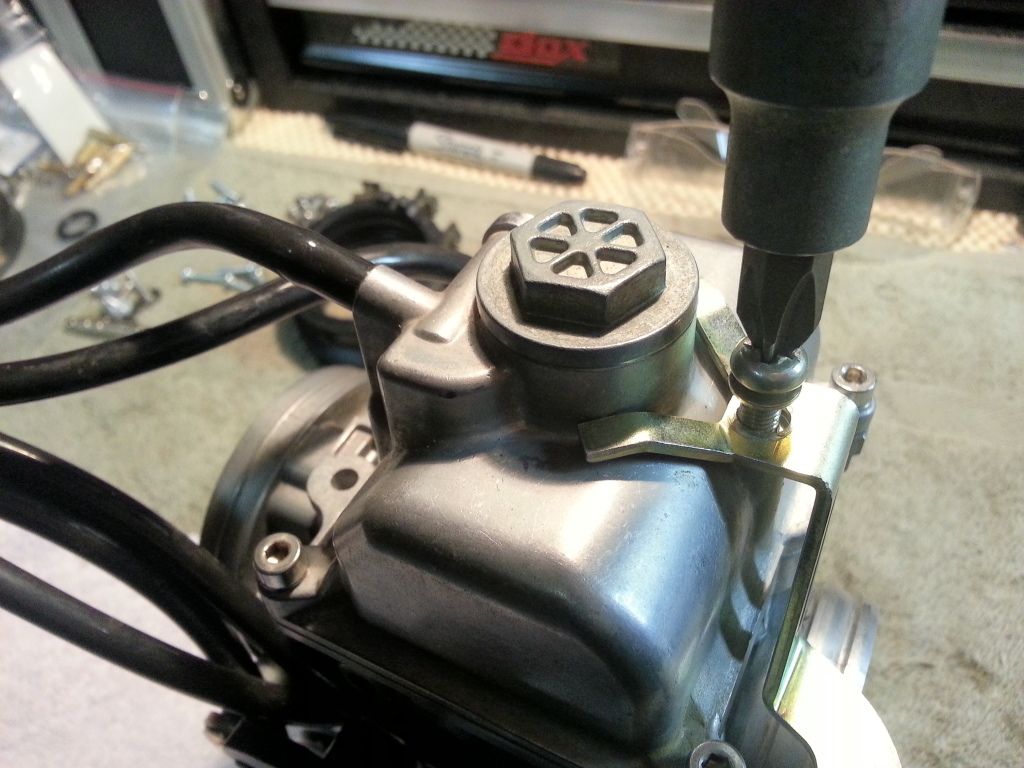

Re-install the idle adjustment bracket and float bowl drain tube.


Step-30

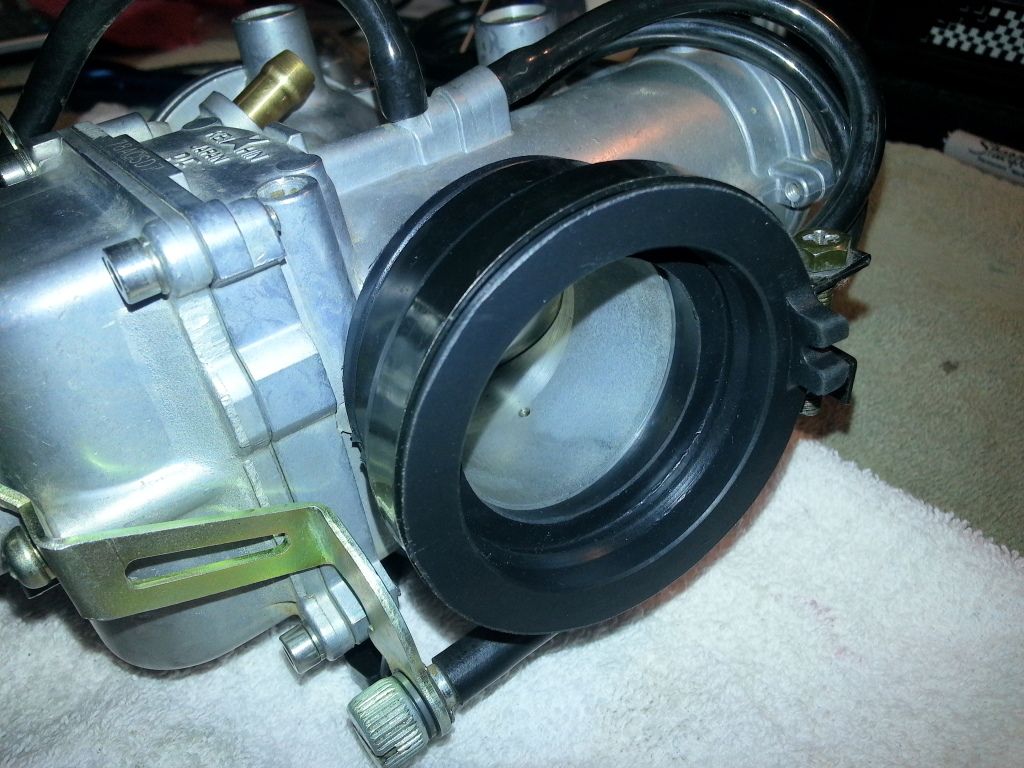

Remove the clamps from the old rubber manifold and put them on the new one. This looks so much better than before.


INTERMISSION
We are now done inside the carb. From here on we're putting the carb back in the bike. We've replaced the rubber carb manifold, needle, needle jet, main jet and pilot jet. Hmmmmm, Ok, one more beer...


Step-31

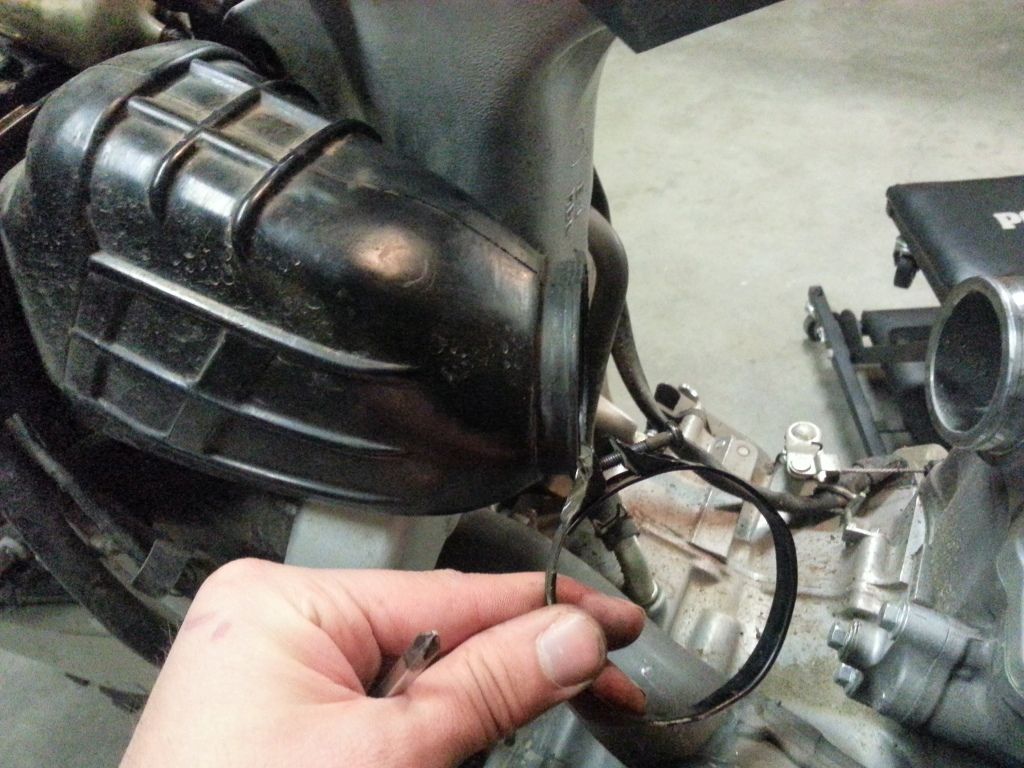

If you haven't already, completely remove the clamp from the airbox boot then weasel the carb into place.Don't tighten the clamps just yet.



Step-32

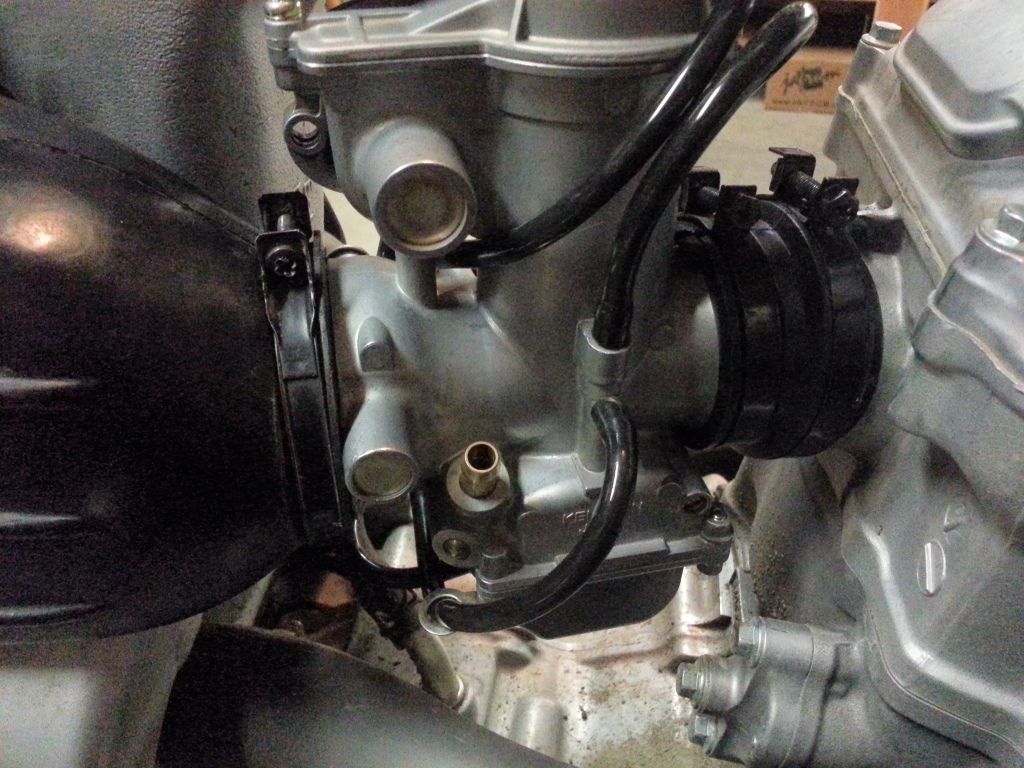

Turn the carb back over on its side towards the pipe and re-install the throttle cables making sure to route the one side UNDER the idle adjustment screw. Once the cables are installed on the cam, stand the carb back up, fit the bracket back into place and tighten it down with the screw. Once that is done now tighten the three carb clamps.



Step-33

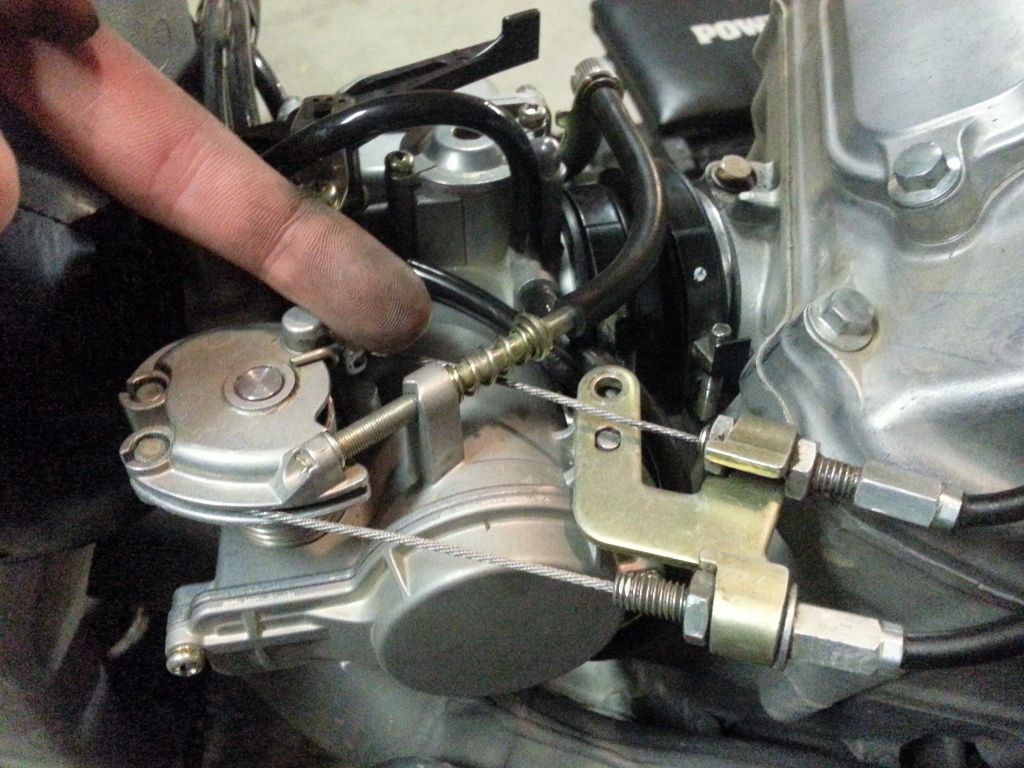

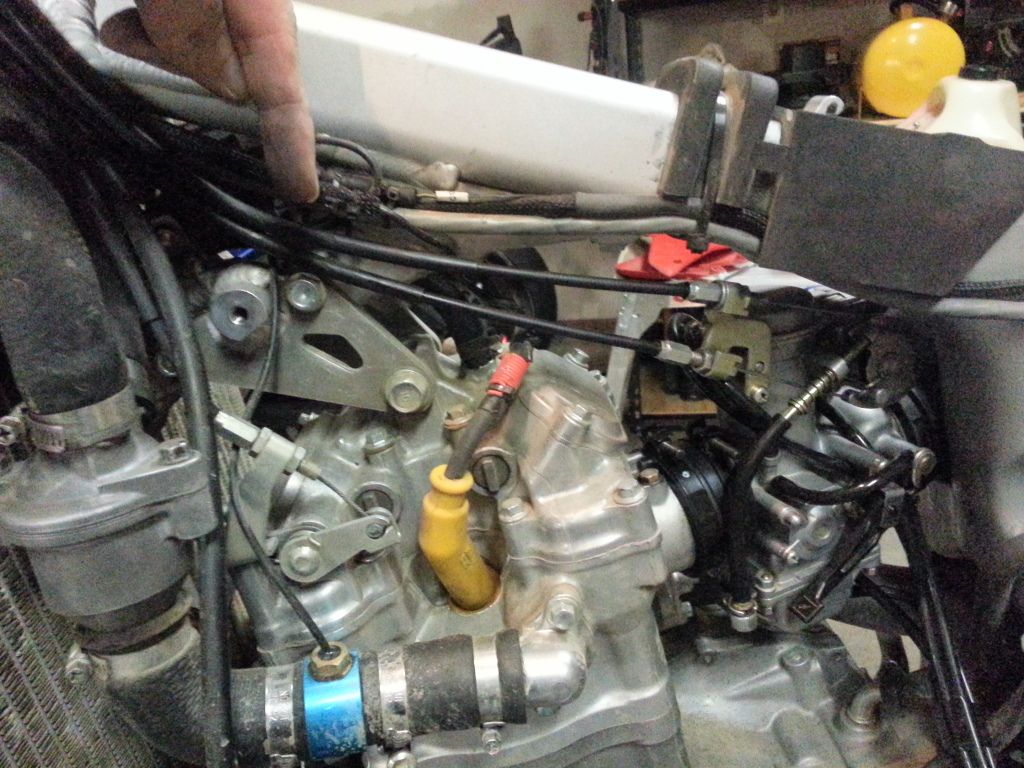

Be sure to route your throttle cables above the tank mounts. If you push them down below the mount when you put the tank on they can pinch/stretch and that's bad for you.


Step-34

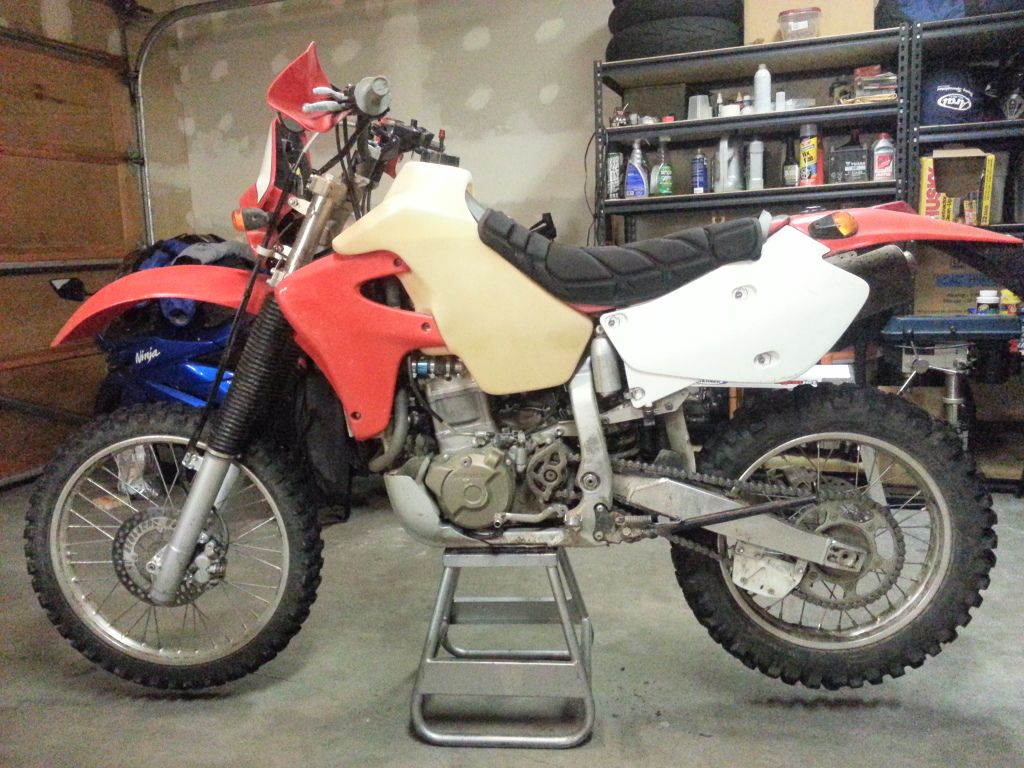

Put all the pieces back on. Tank, shrouds, seat then kick and kick and kick and kick then swear, kick, swear, kick then swear some more when you remember the petcock is still turned to off... Fire the pig up and you are officially re-jetted.


This concludes the Re-Jetting Procedure with loads of pictures. Hope that can help someone else some day. Jetting isn't very hard, just takes a lot of time if you need to do more than the main. Just the main jet is a piece of cake.

Cheers everyone!

cheers

MA$TER_E
avatar
MA$TER_E
XRR Jockey

Joined : 2012-09-04

Posts : 178
Location : Gladstone, OR
XR650R Year : 2005

http://www.xr650rforum.com/t1576-mater_e-s-project-beasty

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  Mauser on Mon Dec 24, 2012 9:21 am

That's spot on and must be made a sticky !!!!.
Only points I would make is getting the old screws out can be hard work as they tend to be tight and the screw head quality is poo....I replaced my bowl screws with stainless cap heads.
Also 1 of the step 9 screws is difficult to get to due to the arm being in the way.....most important to have perfect fitting screw drivers handy.
Wish I knew the throttle cable trick before I did mine, I removed the cable lol.
Thanks ever so much for taking the time and effort to do the write up.... really is appreciated.

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1831
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  Mad Frosty on Mon Dec 24, 2012 11:03 pm

You two have nothing better to do on christmass eve ?
Santa
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  SMXR on Tue Sep 06, 2016 8:00 am

This helped me so much thank you
avatar
SMXR
L Rider

Joined : 2016-09-06

Posts : 8
Location : COLORADO
XR650R Year : 2003

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  archie_1989 on Sat Dec 03, 2016 10:15 am

So I figured out by checking VIN that my XR is an AUS model, even though DVLA records don't mention anything about import.
Perhaps, it was imported by a dealer.
According to this:
http://www.xr650r.co.uk/about/faqs.shtml

Australian models run 112/65s/3rd jetting, and may be corked as well, depending on dealer.

Has anyone in UK had an AUS model?
What would be the correct jetting for UK London, as I'm planning to dig into it today? Same as in that great write up above?
avatar
archie_1989
L Rider

Joined : 2016-10-21

Posts : 14
Location : London UK
XR650R Year : R3

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  wassie on Sat Dec 03, 2016 11:49 pm

I have an Aussie bike. Uncorked and goes good upto 1000m which is as high as it gets around here.
168 main
65S imulsion jet
Not sure about the needle I think maybe NEEDLE SET, JET 16012-MBN-641
avatar
wassie
L Rider

Joined : 2015-07-12

Posts : 49
Location : Brisbane QLD
XR650R Year : 2001

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  archie_1989 on Sun Dec 04, 2016 9:35 pm

wassie wrote:I have an Aussie bike. Uncorked and goes good upto 1000m which is as high as it gets around here.
168 main
65S imulsion jet
Not sure about the needle I think maybe   kNEEDLE SET, JET 16012-MBN-641

Thanks for your input;)
I've seen people doing 172 or 175 for the main jet. Not sure what would be the best option Sad
avatar
archie_1989
L Rider

Joined : 2016-10-21

Posts : 14
Location : London UK
XR650R Year : R3

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  Mauser on Sun Dec 04, 2016 10:07 pm

Just stick with stock UK/EU jets/settings ?.....

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1831
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  wassie on Mon Dec 05, 2016 9:36 am

The colour of the rear hole where the Zorst gas comes out is a lovely mocka colour.
I've had 4.95l/100km and not worried at all about running to lean.
avatar
wassie
L Rider

Joined : 2015-07-12

Posts : 49
Location : Brisbane QLD
XR650R Year : 2001

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  archie_1989 on Mon Dec 05, 2016 4:05 pm

So I opened the carb today, it's 175 main jet, b53e needle, an 65s pilot jet. Do you guys think changing to 68s would make much difference?

I've got a K&N filter, shall I change it to OEM? Also Two Brothers exhaust.


Last edited by archie_1989 on Mon Dec 05, 2016 4:09 pm; edited 2 times in total
avatar
archie_1989
L Rider

Joined : 2016-10-21

Posts : 14
Location : London UK
XR650R Year : R3

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  archie_1989 on Mon Dec 05, 2016 4:08 pm

So I opened the carb today, it's 175 main jet, b53e needle, an 65s pilot jet. Do you guys think changing to 68s would make much difference?

I've got a K&N filter, shall I change it to OEM? Also Two Brothers exhaust.
avatar
archie_1989
L Rider

Joined : 2016-10-21

Posts : 14
Location : London UK
XR650R Year : R3

Back to top Go down

jetting

Post  temporary kiwi on Tue Dec 06, 2016 9:25 am

howdy archie, have you opened up your airbox sidecover for free breathing?, the panel k&n filter is a direct replacement in flow capability, the mtr will however breath better with the s/cover mod as well, then you will need the larger pilot jet,

temporary kiwi
XRR Jockey

Joined : 2013-04-10

Posts : 211
Location : waikato, new zealand
XR650R Year : 02

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  archie_1989 on Wed Dec 07, 2016 12:33 pm

temporary kiwi wrote:howdy archie, have you opened up your airbox sidecover for free breathing?, the panel k&n filter is a direct replacement in flow capability, the mtr will however breath better with the s/cover mod as well, then you will need the larger pilot jet,

Nope the white side cover is not opened yet.
avatar
archie_1989
L Rider

Joined : 2016-10-21

Posts : 14
Location : London UK
XR650R Year : R3

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  BuRP on Wed Dec 07, 2016 2:15 pm

a main jet of 112 is definitely a corked bike!
And, a 68S idle jet will work wonders Bump
avatar
BuRP
XRR Monger

Joined : 2010-10-18

Posts : 1580
Location : Pretoria Souf Efrika
XR650R Year : 2007

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  Mauser on Wed Dec 07, 2016 4:27 pm

But shouldn't be corked unless it's a North American import listen up

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1831
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  Jason Woodall on Mon Mar 20, 2017 1:52 pm

Such a helpful thread. Thanks so much...
avatar
Jason Woodall
XRR Jockey

Joined : 2015-05-26

Posts : 59
Location : England
XR650R Year : 2001

Back to top Go down

Re: Complete XRR Re-Jetting Procedure

Post  BuRP on Wed Mar 22, 2017 9:36 am

Mad Frosty wrote: You two have nothing better to do on christmass eve ?
Santa

Hey, you Mad Dude, you still hang around here?
Miss your quips & quirks here, would not mind to be insulted again by you from time to time actually BRP smile Bump
In any case Keep Well!
avatar
